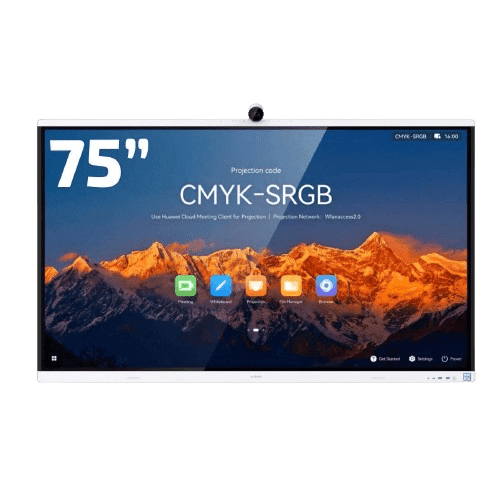

Huawei IdeaHub S2 75″Inch Interactive Flat Panel 4K Touch

The Huawei IdeaHub S2 75″Inch is a versatile interactive flat panel with a 4K UHD display, 20-point multi-touch capability, and integrated 4K camera. It offers seamless collaboration through real-time whiteboarding, wireless screen sharing, and remote meeting support. With powerful audio, smart features, and an intuitive interface, it’s ideal for modern business and educational environments.

Huawei IdeaHub S2 75″Inch Interactive Flat Panel 4K Touch

Display

• Screen Size: 75 inches
• Resolution: 4K UHD (3840 x 2160)
• Aspect Ratio: 16:9
• Panel Type: LED
• Brightness: 350 cd/m² (typical)
• Contrast Ratio: 1200:1
• Viewing Angle: 178° horizontal/vertical
• Response Time: 8 ms (gray to gray)
• Color Depth: 1.07 billion colors (10-bit)

Touch Technology For Huawei IdeaHub S2 75″Inch

• Touch Type: Infrared (IR)
• Touch Points: 20-point multi-touch
• Touch Accuracy: ±1 mm
• Response Time: < 10 ms
• Glass: 4 mm anti-glare, tempered glass

Audio For Huawei IdeaHub S2 75″Inch

• Speakers: Integrated 4 speakers
• Speaker Output: 20W x 2 + 15W x 2
• Microphone Array: 12-microphone array with a 12-meter voice pickup radius
• Noise Cancellation: Yes
• Echo Cancellation: Yes

Camera

• Camera Type: Built-in HD camera
• Resolution: 4K
• Field of View (FOV): 90°
• Auto Framing: Yes

Connectivity

• HDMI Inputs: 3 x HDMI 2.0
• USB Ports: 3 x USB 3.0, 1 x USB-C
• Network Ports: 1 x Gigabit Ethernet (RJ-45)
• Wi-Fi: Dual-band Wi-Fi (2.4 GHz / 5 GHz)
• Bluetooth: Bluetooth 5.0

Operating System

• OS: HarmonyOS or Android-based custom OS
• Processor: Quad-core ARM Cortex-A73
• RAM: 4 GB
• Internal Storage: 32 GB

Collaboration Features

• Whiteboard: Real-time interactive whiteboarding
• Annotation: Supports real-time annotations
• Screen Sharing: Wireless screen sharing (Miracast, AirPlay, Huawei Share)
• Remote Collaboration: Supports cloud-based remote meetings
• App Integration: Compatible with third-party apps and conferencing platforms (Zoom, Teams, etc.)

Power

• Power Supply: 100-240V AC, 50/60Hz
• Power Consumption: ≤400W (typical)

Dimensions and Weight

• Dimensions (W x H x D): 1732 mm x 1038 mm x 92 mm
• Weight: Approx. 60 kg

Mounting Options

• Wall Mount: VESA 600 x 400 mm
• Stand: Optional mobile stand available

Environmental

• Operating Temperature: 0°C to 40°C
• Storage Temperature: -20°C to 60°C
• Humidity: 10% to 90% RH (non-condensing)

Certifications

• Certifications: CE, FCC, RoHS, CCC, ENERGY STAR

Additional Features

• Smart Writing Recognition: Converts handwriting to text
• Voice Control: Supports voice commands for certain functions
• Gesture Control: Basic gesture controls for navigation
• Energy Saving: Auto-sleep mode, ambient light sensor

This interactive flat panel is designed for modern business and educational environments, providing a versatile solution for presentations, remote collaboration, and interactive learning.
