Samsung 46″ Video Wall Display – Full HD, 24/7 Usage

The Samsung 46″ Video Wall Display – Full HD, 24/7 Usage offers stunning Full HD resolution, ideal for dynamic digital signage and professional video wall applications. With 700 nits brightness, a 3500:1 contrast ratio, and a wide 178° viewing angle, it delivers clear and vibrant visuals from any direction. Designed for 24/7 operation, this LED display is equipped with multiple connectivity options, including HDMI, DVI-D, DisplayPort, and RJ45, ensuring seamless integration into any setup.

Specification for Samsung 46″ Video Wall Display – Full HD, 24/7 Usage

1. Display Specifications

• Screen Size: 46 inches (Diagonal)
• Resolution: Full HD (1920 x 1080 pixels)
• Brightness: 500 nits (typical)
• Contrast Ratio: 3500:1
• Viewing Angle: 178° (Horizontal) / 178° (Vertical)
• Color Support: 16.7 million colors
• Response Time: 8 ms (G-to-G)
• Panel Type: DID (Digital Information Display) Technology
• Backlight Type: LED

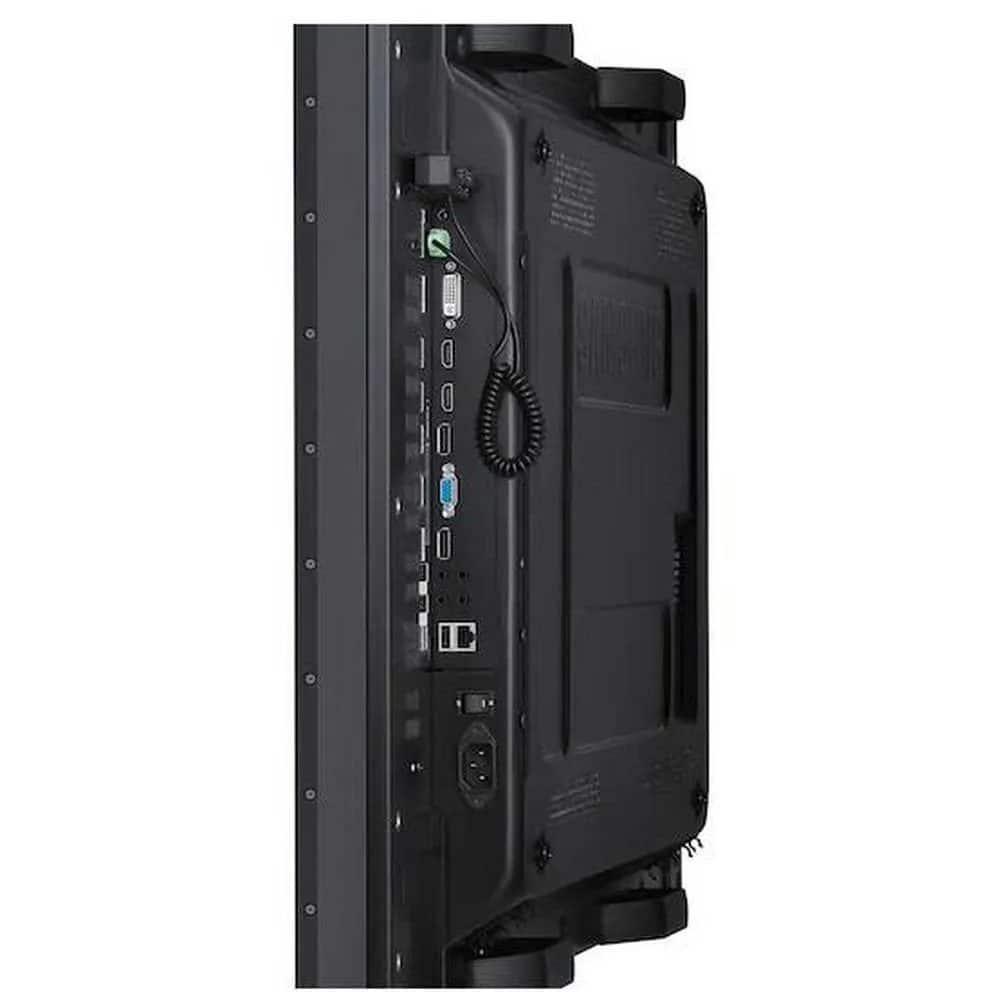

2. Connectivity

• Input Ports:
  • 2 x HDMI
  • 1 x DVI-D
  • 1 x DisplayPort
  • 1 x VGA (D-Sub)
  • 1 x Component (Y/Pb/Pr)
  • 1 x Composite (AV)
  • 1 x RJ45 (LAN)
• Output Ports:
  • 1 x DVI-D (Loop-out)
  • 1 x DisplayPort (Loop-out)
• Other Ports:
  • 1 x RS232C (In/Out)
  • 1 x IR In/Out
  • 2 x USB 2.0

3. Video Wall Capabilities

• Bezel Width: 3.5mm (1.7mm on the top and left, 1.8mm on the bottom and right)
• Tile Mode: 10 x 10 configuration
• Image Rotation: 0°, 90°, 180°, 270°
• Auto Source Switching & Recovery: Yes
• Dynamic Contrast Ratio: Mega DCR

4. 24/7 Operation

• Operating Time: 24/7 continuous operation
• Cooling System: Built-in cooling management system for long-term reliability
• Temperature Range: 0°C to 40°C (32°F to 104°F)
• Humidity Range: 10% to 80% non-condensing

5. Audio

• Built-in Speakers: Optional (external speakers supported)
• Audio Output: Stereo Mini Jack, External Speaker Out
