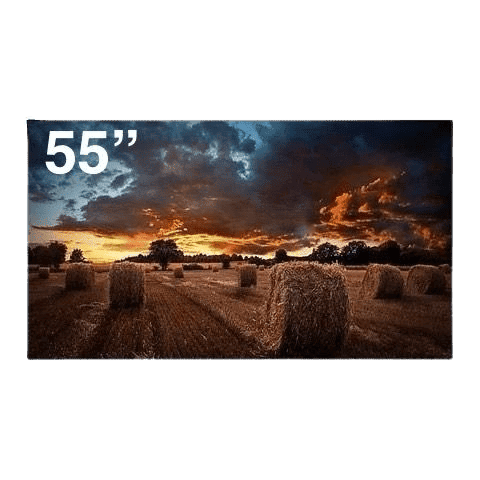

Samsung 55″ Video Wall Display – Full HD, 24/7 Usage

The Samsung 55″ Video Wall Display – Full HD, 24/7 Usage offers Full HD resolution and ultra-narrow bezels for seamless multi-screen setups. With 500 nits brightness, 24/7 operation, and a variety of connectivity options, it’s perfect for high-demand environments like control rooms, retail, and public spaces. Durable and reliable, this display ensures consistent performance with vivid visuals, ideal for creating impressive video walls.

Specification for Samsung 55″ Video Wall Display – Full HD, 24/7 Usage

---

Model: Samsung 55″ Video Wall Display

---

General Specifications:

• Screen Size: 55 inches (diagonal)
• Resolution: Full HD (1920 x 1080 pixels)
• Aspect Ratio: 16:9
• Panel Technology: Direct LED (D-LED)
• Brightness: Typically 500 nits (cd/m²)
• Contrast Ratio: 4000:1
• Viewing Angle: 178°/178° (horizontal/vertical)
• Response Time: 8ms (G-to-G)
• Color Gamut: 72% (NTSC)
• Surface Treatment: Anti-glare, Haze 25%

---

Video Wall Capabilities:

• Bezel Width: Ultra-narrow bezel, typically 1.7 mm (top/left), 0.8 mm (bottom/right)
• Video Wall Matrix: Supports 2×2, 3×3, 4×4, and up to 15×15 configurations
• Seamless Display: Allows virtually seamless images across the video wall
• Image Rotation: Supports portrait and landscape modes

---

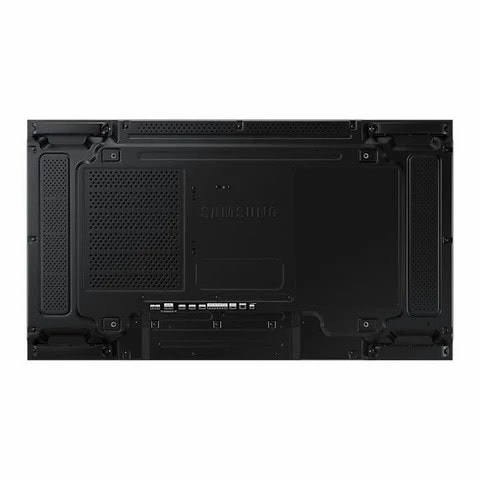

Connectivity:

• Inputs:
  • 1 x HDMI (with HDCP support)
  • 1 x DisplayPort 1.2
  • 1 x DVI-D
  • 1 x D-sub (VGA)
  • 1 x USB (for firmware updates and media playback)
• Outputs:
  • 1 x DisplayPort (Loop-out)
  • 1 x DVI-I (Loop-out)
• Control:
  • 1 x RS232C In/Out
  • 1 x RJ45 (LAN)
  • 1 x IR In/Out
  • 1 x Audio In/Out (3.5mm)
• Audio: Built-in speakers (10W + 10W)

---

Operational Features:

• 24/7 Operation: Designed for continuous operation
• Cooling: Integrated heat management with multiple fans
• Temperature Range: Operational temperature range of 0°C to 40°C
• Power Supply: AC 100-240V, 50/60Hz
• Power Consumption: Typically 200W (operational), Less than 0.5W (standby)

---

Software and Management:

• Built-in Media Player: Supports a variety of media formats for standalone operation
• Software: Compatible with Samsung MagicInfo for content management and scheduling
• Remote Management: Allows monitoring and control via network
• Color Calibration: Factory calibrated for color uniformity across the video wall

---

Physical Specifications:

• Dimensions (WxHxD): Approx. 1210 x 681 x 96 mm
• Weight: Approx. 25 kg
• Mounting: VESA Mount (400 x 400 mm)
• Bezel Color: Black, with anti-reflective coating

---

Environmental Compliance:

• Certifications: Energy Star, RoHS compliant
• Warranty: 3-year limited warranty (parts and labor)

---

Accessories Included:

• Remote Control: Standard remote control with batteries
• Cables: Power cord, HDMI cable, RS232C cable
• Quick Setup Guide: Basic installation and operation manual
• Wall Mount Kit: Optional, sold separately

---

This specification outlines the key features and technical details of the Samsung 55″ Video Wall Display, suitable for high-demand environments requiring continuous operation and high-quality visual output.
