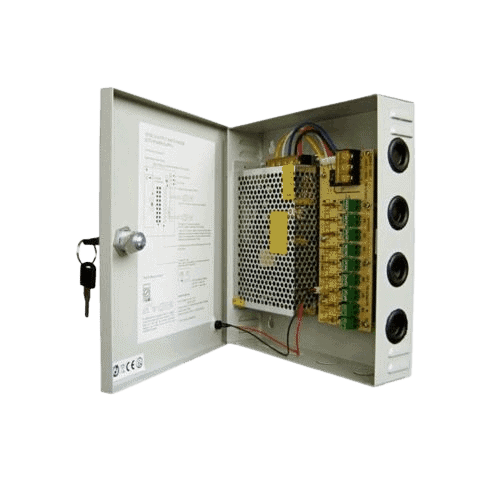

Pinnsec PS13 18-way Switch Mode Power Supply

The Pinnsec PS13 10-12VDC 25A 18-way Switch Mode Power Supply is a versatile, high-capacity power supply designed to provide stable 10-12V DC power across 18 independent output channels. With adjustable voltage, overload protection, and efficient cooling, it is ideal for powering CCTV systems, security devices, LED lights, and more.

General Information:

• Product Name: Pinnsec PS13 10-12VDC 25A 18-way Switch Mode Power Supply
• Type: Switch Mode Power Supply (SMPS)
• Output Voltage: 10-12V DC (adjustable)
• Total Output Current: 25A
• Number of Channels: 18 independent output channels
• Form Factor: Rack-mounted or wall-mounted (depending on model)

Key Features:

• Multiple Output Channels: This power supply provides 18 independent 10-12V DC output channels, each capable of delivering up to a specific current (depends on load, but typically up to 1.4A per channel for full 25A total).
• Adjustable Voltage: The output voltage can be adjusted between 10V to 12V DC, making it versatile for various low-voltage applications, including powering CCTV cameras, security systems, LED lights, and other electronics.
• High Current Capacity: Capable of delivering a total current of 25A, ideal for powering multiple devices simultaneously, including high-power devices like CCTV cameras, alarm systems, and other 12V electronics.
• Switch Mode Technology: Efficient switch-mode design ensures low power loss and better energy efficiency compared to traditional linear power supplies.
• Overload and Short-Circuit Protection: Built-in protection features help ensure safety and prevent damage to both the power supply and connected devices by shutting down the unit in case of overload or short circuit.
• LED Indicators: Equipped with LED indicators for each output channel to provide visual status updates, making it easy to monitor power levels and troubleshoot issues.
• Cooling: Active cooling via an internal fan ensures the unit operates efficiently, even under load, by preventing overheating.

Electrical Specifications:

• Output Voltage: Adjustable from 10V to 12V DC
• Total Output Current: 25A
• Current Per Channel: Varies (up to approximately 1.4A per channel depending on distribution)
• Input Voltage: Typically 110-240V AC (universal input)
• Frequency: 50/60Hz
• Power Output: 300W (25A x 12V)
• Efficiency: Typically 85-90% depending on load

Environmental and Physical Specifications:

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Humidity: 10% to 90% non-condensing
• Cooling: Active cooling via internal fan
• Form Factor: Typically a rack-mounted or wall-mounted design
• Dimensions: 19-inch rack-mountable unit or compact wall-mounted form (depending on model)
• Weight: Approximately 3-5 kg, depending on the specific form factor

Applications:

• Security Systems: Perfect for powering multiple CCTV cameras, alarm systems, and access control devices in security installations.
• LED Lighting: Suitable for powering LED strips, controllers, and other LED lighting equipment in both residential and commercial applications.
• Other 12V Devices: Can be used for various 12V devices requiring stable and adjustable power, including communication equipment, routers, and industrial control systems.

Certifications and Compliance:

• Safety: CE, UL, RoHS compliant (depending on model and region)
• Protection Features: Overload, short-circuit, and over-temperature protection
• Energy Efficiency: Designed for low power loss and efficient operation, reducing energy consumption compared to traditional linear power supplies.
