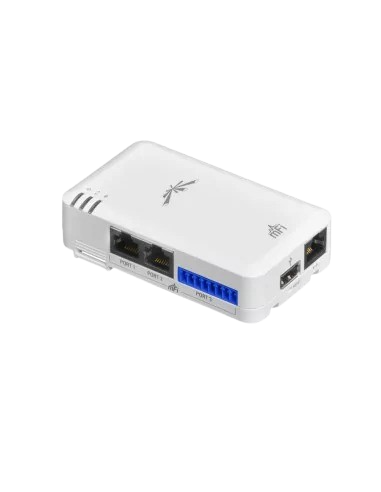

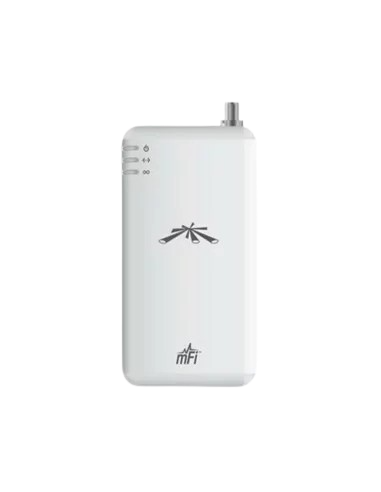

Ubiquiti mFi mPort IP Gateway with Serial Port & PoE

The Ubiquiti mFi mPort IP Gateway with Serial Port & PoE (model UBM-MPORT-S) is a compact and versatile device designed to integrate legacy serial equipment into modern IP-based networks. Featuring both RS232 and terminal block serial ports, it facilitates seamless communication between older machines and the mFi system. Connectivity options include built-in Wi-Fi (802.11b/g/n) and a 10/100 Ethernet port, ensuring flexible deployment in various environments.

The device supports up to three mFi sensors via RJ45 or terminal block connections, enabling comprehensive monitoring and control. With Power over Ethernet (PoE) support and a maximum power consumption of 3W, the mPort offers efficient power management. Its robust design includes an external antenna connector for extended range in industrial applications. Operating within a temperature range of -10°C to 70°C and a humidity range of 5% to 80% (condensing), it is suitable for diverse conditions. The mFi mPort Controller software allows for easy management and monitoring, providing a user-friendly interface for overseeing connected devices.

🔧 Technical Specifications

General

• Model: UBM-MPORT-S

• Power Supply: 24V, 0.5A Surge Protection; Integrated PoE Adapter (Included)

• Max Power Consumption: 3W

• Networking Interface: 10/100 Ethernet Port

• Wi-Fi Standards: 802.11b/g/n

• Memory: 16MB RAM, 8MB Flash

• LED Indicators: 3 LEDs (Power, Ethernet, Status)

• Mounting: Wall-Mount Bracket (Included)

• Operating Temperature: -10°C to 70°C (14°F to 158°F)

• Operating Humidity: 5% to 80% Condensing

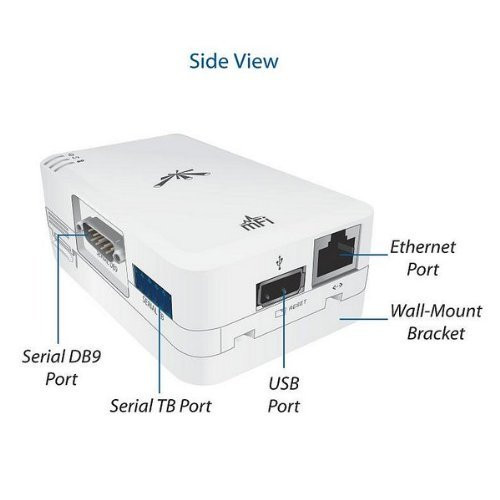

Ports

• Serial Ports:

  • DB9 Serial Port

  • Terminal Block Serial Port

Serial Protocols Supported:

• RS232

• RS422

• RS485

Included Accessories:

• 1x mPort-S Unit

• 1x Wall Mounting Kit

• 1x Power Adapter

• 1x Power Cord

• 1x Antenna

• 1x Terminal Block (Male)

• 4x Screws

• 4x Anchors

• 1x Quick Start Guide
