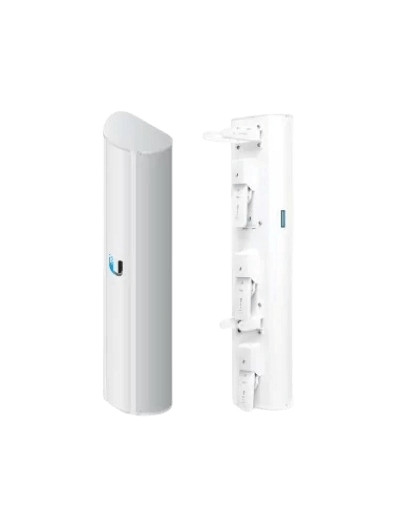

Ubiquiti UISP airMAX Sector 5GHz AirMax AC Prism

The Ubiquiti UISP airMAX Sector 5GHz AirMax AC Prism is a high-performance wireless solution designed for point-to-multipoint networks. It features 5GHz 802.11ac technology with a 17dBi gain antenna, providing up to 1.5Gbps throughput. The sector antenna offers a 60° beamwidth for efficient coverage, while dual-polarized MIMO and advanced security ensure reliable performance. Ideal for ISPs and large outdoor deployments, it supports PoE power, easy mounting, and management via the UISP platform.

Full Specifications:

• Technology: 5GHz airMAX AC (Advanced Carrier Technology)
• Frequency Range: 5.1GHz to 5.9GHz
• Throughput: Up to 1.5Gbps (with 802.11ac)
• Radio Type: 802.11ac, MIMO (Multiple Input Multiple Output)
• Beamwidth: 60° sector
• Antenna Gain: 17dBi
• Polarization: Dual-polarized (Horizontal and Vertical)
• Max Output Power: 28dBm (Power adjustable)
• Networking:
  • 2 x Gigabit Ethernet Ports
  • 1 x SFP port (optional for fiber connectivity)
• Processor: Atheros MIPS 74K 560 MHz
• RAM: 512MB DDR3
• Flash Storage: 64MB
• Security: WPA2, AES encryption, and secure management
• Power Supply: 48V 0.5A PoE (Power over Ethernet)
• Power Consumption: 15W typical
• Mounting: Pole-mountable with adjustable bracket
• Operating Temperature: -40°C to 70°C (-40°F to 158°F)
• Dimensions:
  • 10.2 x 12.3 x 3.5 inches (259 x 312 x 89 mm)
• Weight: 2.2 lbs (1 kg)
• Management: UISP (Ubiquiti ISP) platform for easy configuration and monitoring
• Mounting: Adjustable pole mounting hardware included

Ideal For:

• Point-to-multipoint (PtMP) wireless networks in high-density environments
• ISPs requiring high-performance, long-range 5GHz wireless solutions
• Expanding coverage with efficient, sector-based antenna design for outdoor installations
