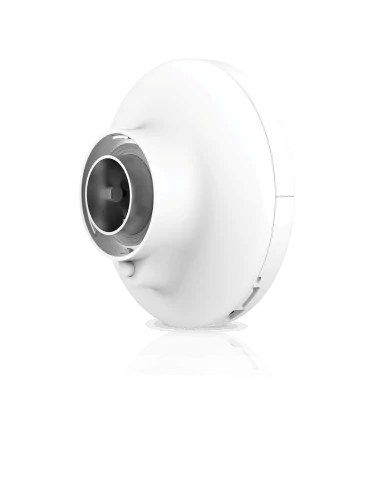

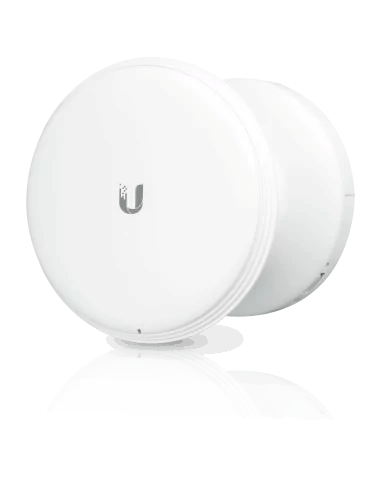

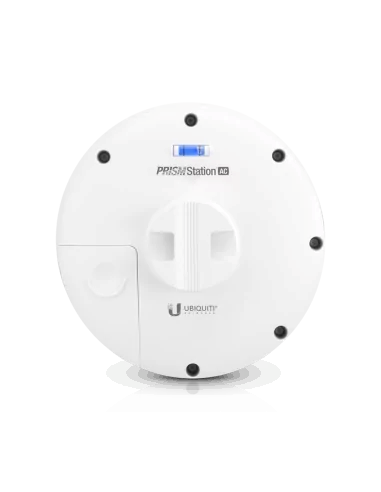

Ubiquiti UISP airMAX PrismStation AC 5 GHz Radio

The Ubiquiti UISP airMAX PrismStation AC (5 GHz Radio) is a high-performance, modular base station designed for advanced point-to-point (PtP) and point-to-multipoint (PtMP) wireless deployments. Operating in the 5 GHz band, it leverages airMAX ac technology and Prism Active RF Filtering to deliver superior noise isolation, high throughput, and low latency in congested RF environments. Its modular design allows compatibility with interchangeable horn antennas for customized beamwidths and coverage patterns, making it ideal for dense urban or co-location deployments. Engineered with GPS synchronization and airPrism filtering, the PrismStation AC offers enhanced scalability, network efficiency, and interference mitigation. It’s easily managed through the UISP platform, providing centralized control and real-time monitoring for ISPs and wireless network operators.

📡 Wireless & RF Specifications

• Operating Frequency (MHz):

  • Worldwide: 5150–5875 MHz

• Management Radio (MHz):

  • Worldwide: 2412–2472 MHz

  • USA/Canada: 2412–2462 MHz

• Modulation: OFDM, QAM

• Max. Output Power: 28 dBm

• Max. Sensitivity: -96 dBm

• Max. VSWR: 2:1

• Polarization: Dual-linear

• Antenna Compatibility: Supports horn antennas (sold separately)

• GPS Connector: 1× GPS

🖥️ Hardware & Power

• Processor: Atheros MIPS 74Kc

• Memory: 128 MB DDR2

• Networking Interface: 1× Gigabit Ethernet (RJ45)

• Power Input: 24V DC via passive PoE (4,5+;7,8 return)

• Power Supply: Included 24V, 1A gigabit PoE adapter

• Supported Voltage Range: 20–26V DC

• Max. Power Consumption: 10W

• ESD/EMP Protection: ±24kV air/contact

• Operating Temperature: -40 to 70°C (-40 to 158°F)

• Operating Humidity: 5–95% non-condensing

🧱 Mechanical & Environmental

• Dimensions:

  • Device: 155 × 155 × 104 mm (5.2 × 5.2 × 4.1″)

  • Mounting Hardware: 83 × 117 × 69 mm (3.3 × 4.6 × 2.7″)

• Weight:

  • Device: 0.8 kg (1.7 lb)

  • Mounting Hardware: 0.8 kg (1.7 lb)

• Wind Loading: 31 N at 200 km/h (7 lbf at 125 mph)

• Wind Survivability: 200 km/h (125 mph)

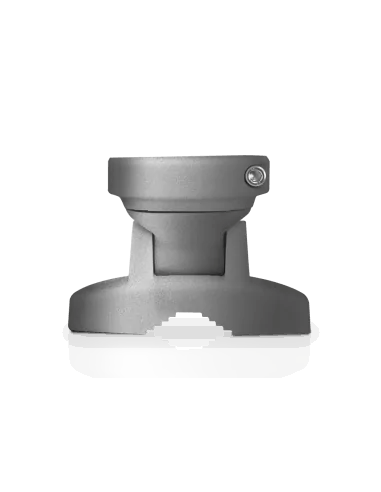

• Mounting: Pole mount kit (included)

• Certifications: CE, FCC, IC

📶 System & Software

• Operating Mode: Access Point (AP), Client, WDS, Router

• Management: airOS VIII

• Security: WPA-AES, WPA2-AES

• DHCP Support: Yes

• IPv6 Support: Transparent (Bridge Mode)

• LED Indicators: 1× Power

• Default IP Address: 192.168.1.20

• Default Username: ubnt

• Default Password: ubnt
