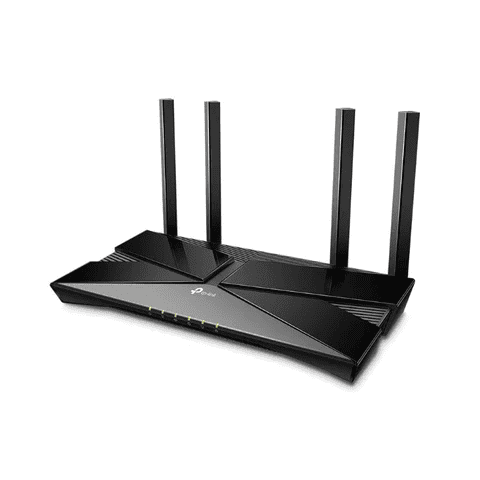

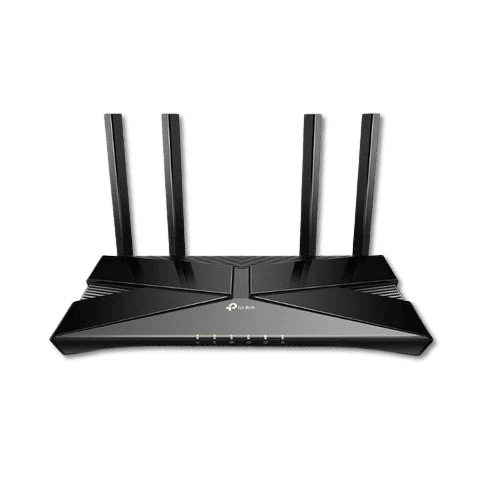

TP-Link Archer AX1500 Wi-Fi 6 Router

The TP-Link Archer AX1500 Wi-Fi 6 Router delivers faster, more reliable wireless performance for modern homes.
With Wi-Fi 6 technology, it offers improved speeds and capacity for streaming, gaming, and browsing. Dual-band connectivity helps reduce network congestion and supports multiple devices simultaneously. Easy setup and management are provided through a user-friendly app interface. This router enhances everyday internet experiences with secure and stable wireless coverage.

Wireless & Performance

• Wi-Fi Standard: Wi-Fi 6 (802.11ax), backward compatible with 802.11ac/n/a 5 GHz and 802.11n/b/g 2.4 GHz

• Wireless Speeds (Approx):

  • 2.4 GHz Band: Up to 300 Mbps

  • 5 GHz Band: Up to 1201 Mbps

  • Total Theoretical Speed: ~1500 Mbps (AX1500)

• Frequency Bands: Dual-band (2.4 GHz + 5 GHz)

• OFDMA: Yes, for efficient multi-device performance

• MU-MIMO: Yes, for simultaneous device communication

• Beamforming: Yes, improves range and signal reliability

• Transmit Power: Region-dependent regulatory limits

Ports & Connectivity

• WAN Port: 1 × Gigabit Ethernet (Internet)

• LAN Ports: 4 × Gigabit Ethernet (LAN)

• USB Ports: None

• Antenna: 4 external high-gain antennas

Hardware

• Processor: High-performance chipset (model specified by region)

• Memory: RAM and flash memory for stable routing performance

• LED Indicators: Power, Internet, 2.4 GHz, 5 GHz

Security & Software Features

• Security Standards: WPA3, WPA2-PSK

• SPI Firewall: Yes

• Access Control: Parental control and device access control

• Guest Network: Separate guest networks supported on both 2.4 GHz and 5 GHz

• IPv6 Support: Yes (IPv4/IPv6 dual stack)

• QoS: Yes (Quality of Service for application/device prioritization)

Management & App Features

• TP-Link Tether App:

  • Easy setup wizard

  • Network management (connected devices, parental controls, guest network)

  • Remote management

• Web UI: Full router configuration from desktop

Package Contents

• TP-Link Archer AX1500 Wi-Fi 6 Router

• Power Adapter

• Ethernet Cable

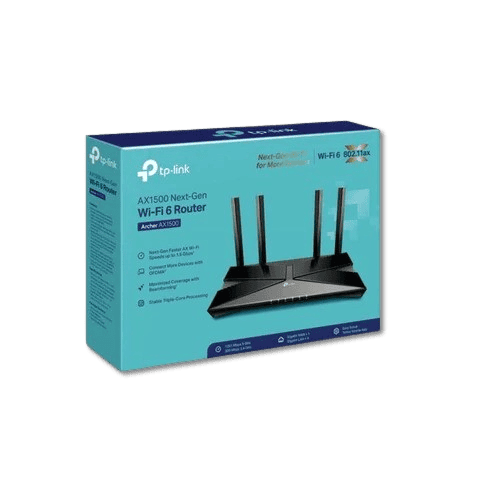

• Quick Installation Guide

Physical & Environmental

• Dimensions: Approx. 10.2 × 5.3 × 1.5 inches / 260 × 135 × 38 mm (approx)

• Weight: Approx. 300–350 g (varies by region)

• Operating Temperature: 0 °C – 40 °C

• Storage Temperature: −40 °C – 70 °C

• Operating Humidity: 10 % – 90 % non-condensing

• Certifications: CE, FCC, RoHS (region dependent)

Network & Protocols

• WAN Connection Types: Dynamic IP, Static IP, PPPoE, L2TP, PPTP

• NAT Forwarding: UPnP, Port Forwarding, DMZ
