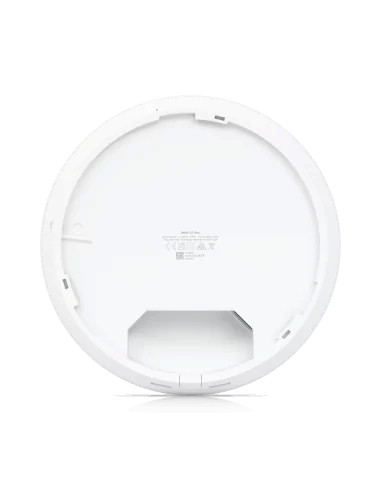

Ubiquiti UniFi Wi-Fi 7 Pro Tri-Band Access Point

The Ubiquiti UniFi Wi-Fi 7 Pro Tri-Band Access Point is a high-performance solution designed for advanced networking environments. It supports the latest Wi-Fi 7 (802.11be) standard, offering blazing fast speeds, improved capacity, and reduced latency across its tri-band setup. Ideal for businesses, enterprise networks, and high-density environments, it delivers exceptional wireless coverage, stable connectivity, and seamless management via the UniFi Network Controller.

Specifications

• Wi-Fi Standard: Wi-Fi 7 (802.11be)
• Frequency Bands: Tri-band (2.4 GHz, 5 GHz, 6 GHz)
  • 2.4 GHz: 2×2 MIMO
  • 5 GHz: 4×4 MIMO
  • 6 GHz: 4×4 MIMO

• Max Wireless Speeds:

  • 2.4 GHz: Up to 1.5 Gbps
  • 5 GHz: Up to 4.8 Gbps
  • 6 GHz: Up to 6.4 Gbps
  • Total combined speed: Up to 12.7 Gbps

• Antenna:

  • 4 external antennas (High-gain, omnidirectional)
  • Optimized for both range and performance

• MIMO:

  • Supports 8×8 MU-MIMO (Multi-User, Multiple Input, Multiple Output)

• Power Supply:

  • PoE (Power over Ethernet) – 802.3at/PoE+ (Power consumption up to 35W)

• Ports:

  • 1x 10/100/1000 Ethernet (PoE input)
  • 1x 10G SFP+ port (for high-speed uplinks)

• Mounting:

  • Wall or ceiling mountable
  • Includes mounting hardware

• Weather Resistance:

  • IP54 rated (dust and water-resistant for indoor/outdoor use)

• Management:

  • Managed through UniFi Network Controller (cloud-based and on-premises management options)
  • Advanced RF management, automatic channel selection, and band steering

• Security:

  • WPA3 encryption for enhanced security
  • Enterprise-level security features

• Power Consumption:

  • Typical: ~25-35W (depending on usage and configuration)

• Dimensions:

  • Approx. 9.5 x 9.5 x 2.5 inches (240 x 240 x 63 mm)

• Weight:

  • Approx. 1.3 kg (2.8 lbs)

• Additional Features:

  • Advanced QoS (Quality of Service) for traffic management
  • Seamless roaming for client devices
  • Supports mesh networking for expanded coverage

• Max Concurrent Clients:

  • Designed to support hundreds of clients efficiently, especially in high-density environments (e.g., offices, conference rooms, stadiums).

Applications:

1. High-Density Business Environments
2. Large Enterprise Networks
3. Conference Rooms and Event Venues
4. Education Campuses
5. Retail Spaces and Malls
6. Hospitality and Hotels
7. Public Hotspots
8. Smart City Infrastructure
9. Healthcare Facilities
10. Large Residential Properties
11. Sports Stadiums and Arenas
12. Industrial and Manufacturing Facilities
13. Airports and Transportation Hubs
