Eaton 16-port USB Charging Station with Syncing USB Charger

Power up and streamline device management with the Eaton 16-Port USB Charging Station with Syncing USB Charger. Designed for high-demand environments like schools, offices, healthcare facilities, and IT departments, this all-in-one solution delivers simultaneous charging and data syncing for up to 16 USB-powered devices. Each port intelligently detects and delivers optimal power to connected smartphones, tablets, and other USB-compatible gear. Built-in syncing functionality ensures quick and seamless data transfer—perfect for mass updates or device imaging.

Specifications:

Technical Specs

• Model Number: Eaton USBCS-16

• USB Ports: 16 × USB Type-A

• USB Standard: USB 2.0 (charging and syncing); backward compatible with USB 1.1

• Charging Output (per port): 5V DC, up to 2.4A (12W max)

• Total Power Output: 192W (16 × 12W)

• Charging Standard: USB BC 1.2 compliant

• Sync Support: Yes – full syncing capability via USB-B uplink to host PC

• Data Transfer Rate: Up to 480 Mbps

• Uplink Port: 1 × USB Type-B

• Input Voltage: 100–240V AC, 50/60Hz

• Input Current: 2.5A @ 115V / 1.3A @ 230V

• Cooling System: Built-in fan with vented enclosure

• LED Indicators: Yes – individual status LEDs for each USB port

• Protection Features:

  • Over-current protection

  • Over-voltage protection

  • Surge protection

  • Short-circuit protection

  • Thermal overload protection

• Enclosure Type: Durable steel chassis

• Mounting: Desktop or wall-mount compatible (brackets optional)

• Operating Temperature: 0°C to 40°C (32°F to 104°F)

• Storage Temperature: -20°C to 60°C (-4°F to 140°F)

• Humidity Tolerance: 10%–90% RH, non-condensing

• Certifications: CE, FCC Class B, UL Listed, RoHS compliant

• Dimensions (W × D × H): Approx. 10.5 × 6.7 × 2.2 inches (26.7 × 17 × 5.6 cm)

• Weight: Approx. 2.8 lbs (1.3 kg)

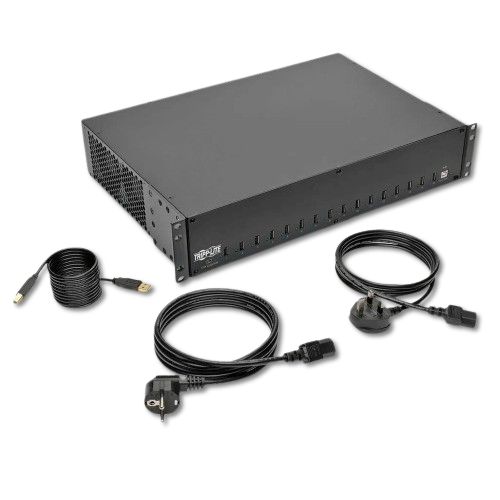

• Included in Box:

  • AC Power Cord

  • USB-B to USB-A Sync Cable

  • Mounting brackets (if applicable)

• Warranty: 1-Year Limited Manufacturer Warranty

Whether you’re managing a fleet of iPads or need a central charging point for your organization, the Eaton 16-Port Charging Station offers unmatched efficiency and control.
