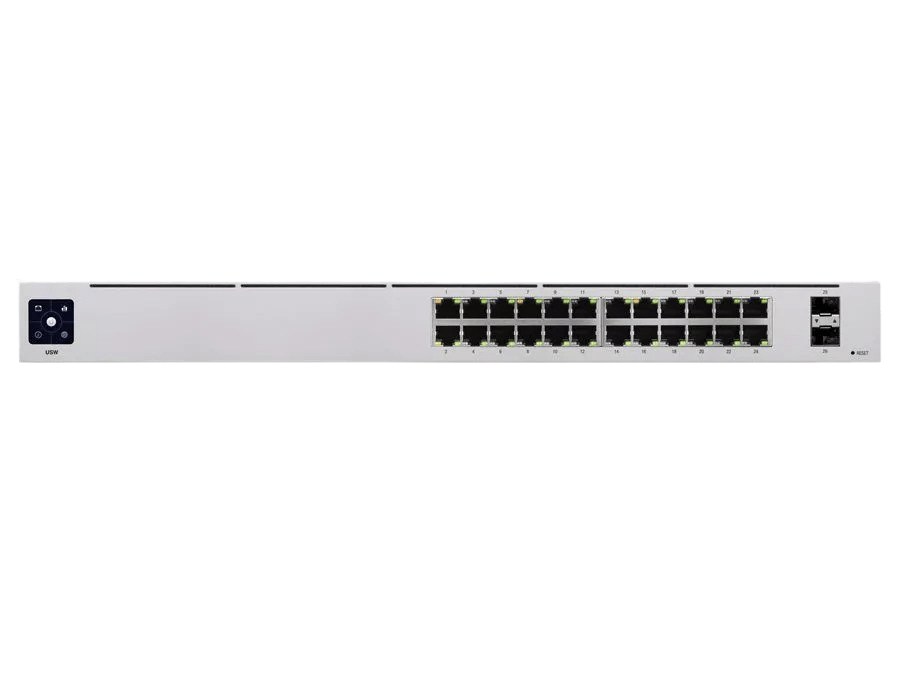

Ubiquiti UniFi Switch Gen 2 – 24 Gigabit Ports + 2 SFP Ports

The Ubiquiti UniFi Switch Gen 2 (USW-24) is a fully managed Layer 2 switch with 24 Gigabit Ethernet ports and 2 SFP uplink ports, offering 52 Gbps switching capacity. Designed for silent, fanless operation, it features a sleek 1U rack-mountable design with a real-time touch display. Managed via the UniFi Controller, it supports VLANs, QoS, and advanced network monitoring, making it ideal for scalable networks in businesses and enterprises.

Specification for Ubiquiti UniFi Switch Gen 2 (USW-24)

The Ubiquiti UniFi Switch Gen 2 (USW-24) is a fully managed Layer 2 switch designed for scalability, ease of use, and seamless integration with the UniFi Network system. This model is ideal for both residential and enterprise-level networks.

---

Key Features:

• Ports:
  • 24 Gigabit Ethernet (1 Gbps) RJ45 ports for high-speed wired connectivity.
  • 2 SFP (1 Gbps) ports for fiber uplink, providing extended network reach.
• Performance:
  • Switching capacity: 52 Gbps.
  • Forwarding rate: 38.69 Mpps (Million Packets Per Second).
• Power:
  • Internal fanless design for silent operation.
  • Supports Power over Ethernet (PoE) passthrough on selected models (not applicable to USW-24 Non-PoE variant).
• Management:
  • Fully managed through the UniFi Controller, offering centralized network management.
  • Provides advanced features like VLAN configuration, traffic monitoring, and QoS (Quality of Service).
• Design:
  • Sleek and modern 1U rack-mountable design with integrated touch-sensitive display.
  • Display shows port statistics and switch information in real time.
• Redundancy:
  • Optional external power redundancy via UniFi SmartPower (USP RPS).
• Power Consumption:
  • Maximum power draw: 25W (varies with usage).
• Mounting:
  • Rack-mountable with included brackets and supports desktop placement.
• Operating Environment:
  • Operating temperature: -5°C to 40°C (23°F to 104°F).
  • Humidity: 10% to 90% non-condensing.

---

Software Features:

• VLAN Support: Advanced VLAN support for network segmentation.
• QoS: Optimized Quality of Service settings for prioritizing critical traffic.
• Security: Includes port security, MAC filtering, and loop detection.
• Monitoring: Offers real-time traffic analysis and reporting.

---

Dimensions & Weight:

• Dimensions: 442.4 x 200 x 43.7 mm (17.41 x 7.87 x 1.72 inches).
• Weight: 2.8 kg (6.17 lbs).

---

Use Cases:

• Ideal for small to medium-sized businesses, educational institutions, and smart homes requiring efficient, scalable network solutions.
