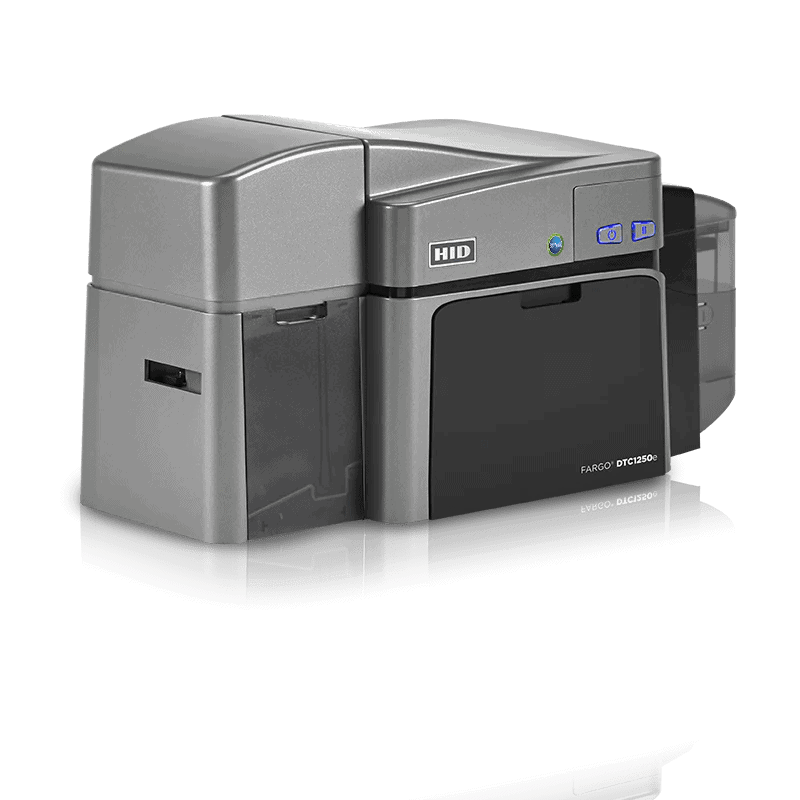

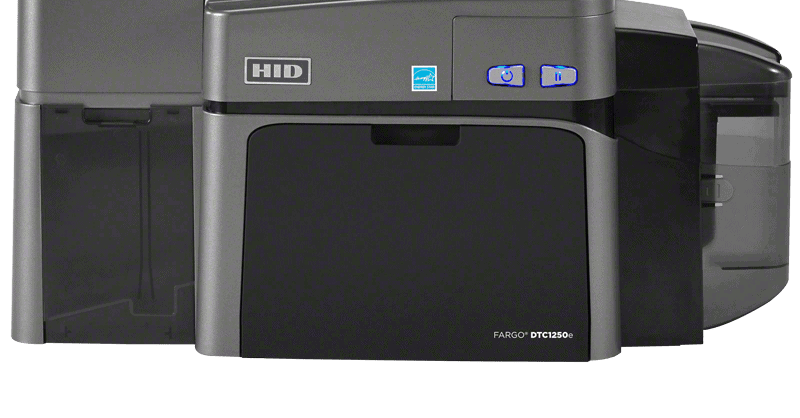

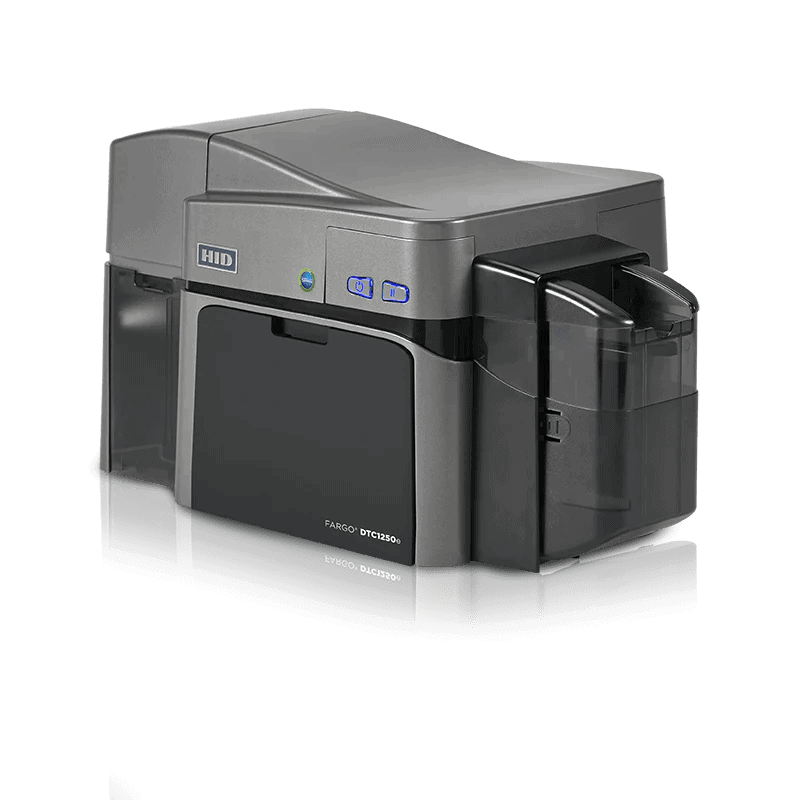

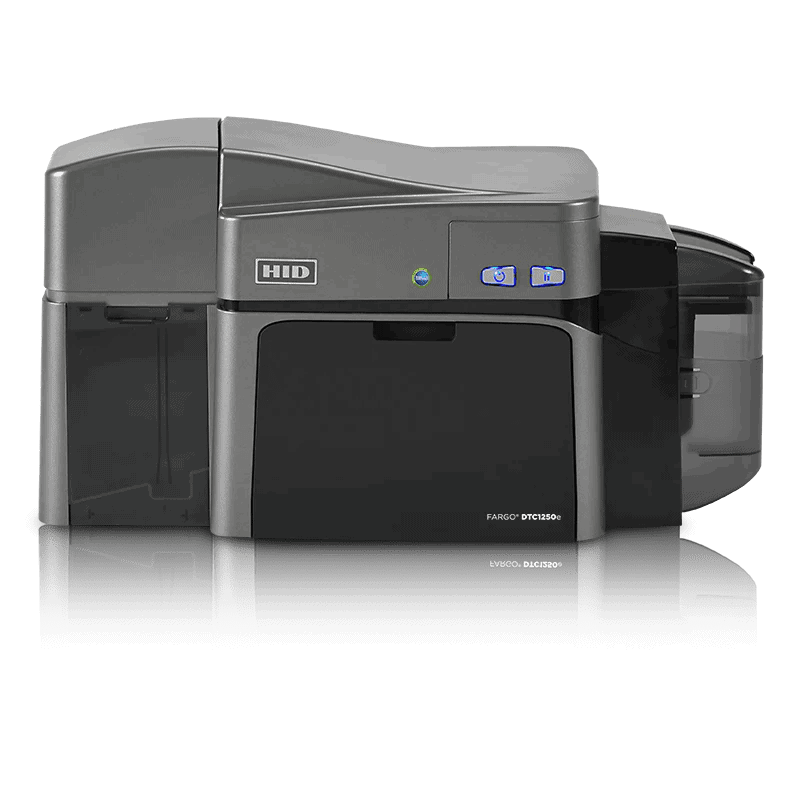

HID FARGO DTC1250e Dual-Sided ID PVC Card Printer

The HID FARGO DTC1250e Dual-Sided ID PVC Card Printer is a compact, efficient printer ideal for small to medium-sized businesses. It offers fast, high-quality dual-sided printing using dye-sublimation and thermal transfer technology, delivering up to 225 full-color cards per hour. With USB connectivity, optional Ethernet, and easy-to-use features, it supports a variety of card materials and thicknesses. Its compact design, reliable performance, and 3-year warranty make it an excellent choice for producing professional ID cards, membership cards, and access control badges.

HID FARGO DTC1250e Dual-Sided ID PVC Card Printer Specifications

General Features:

• Printer Type: Dual-sided ID card printer
• Printing Technology: Dye-sublimation (direct-to-card) and resin thermal transfer
• Print Capability: Full-color dual-sided or monochrome printing
• User Interface: LED status buttons

Print Speed:

• Full-Color (YMCKO): Up to 16 seconds per card (single-sided), approximately 225 cards per hour (single-sided)
• Monochrome: Up to 6 seconds per card (single-sided), approximately 600 cards per hour (single-sided)

Print Resolution:

• Resolution: 300 dpi (dots per inch)

Card Specifications:

• Card Types: PVC, PET, Composite PVC, ABS, and other types of plastic cards (CR-80 standard size)
• Card Thickness: 9 mil to 40 mil (0.228 mm to 1.016 mm)
• Card Size: CR-80 (85.6 mm x 54 mm)

Connectivity:

• USB 2.0: Standard
• Ethernet: Optional
• Supported Operating Systems: Windows 7/8/10 (32- and 64-bit), Mac OS (with additional drivers)

Printing Supplies:

• Ribbon Types: Full-color ribbon (YMCKO), monochrome black, and other specialized ribbons
• Ribbon Capacity:
  • YMCKO: 250 prints per roll
  • Monochrome: Up to 1000 prints per roll
• Input Hopper Capacity: 100 cards (0.030″ / 30 mil thickness)
• Output Hopper Capacity: 30 cards (0.030″ / 30 mil thickness)

Security Features:

• Optional Locking Hopper: For card security
• Password Protection: Optional
• Printer Security: AES-256 data encryption

Lamination (Optional):

• Not available on this model

Dimensions & Weight:

• Dimensions: 9.2″ x 18.1″ x 9.4″ (234 mm x 460 mm x 239 mm)
• Weight: 7.5 lbs (3.4 kg)

Power Requirements:

• Power Supply: External power supply, auto-switching 100-240V AC, 50-60Hz

Environmental Specifications:

• Operating Temperature: 65°F to 80°F (18°C to 27°C)
• Operating Humidity: 20-80% non-condensing
• Storage Temperature: -4°F to 140°F (-20°C to 60°C)

Software and Integration:

• Software Compatibility: HID Fargo Workbench, various third-party card management and security software
• Drivers: Downloadable drivers for supported operating systems

Warranty:

• Printer Warranty: 3 years
• Printhead Warranty: Lifetime warranty with unlimited pass-through cleaning
