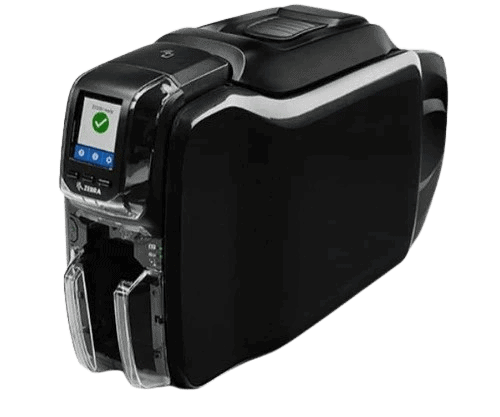

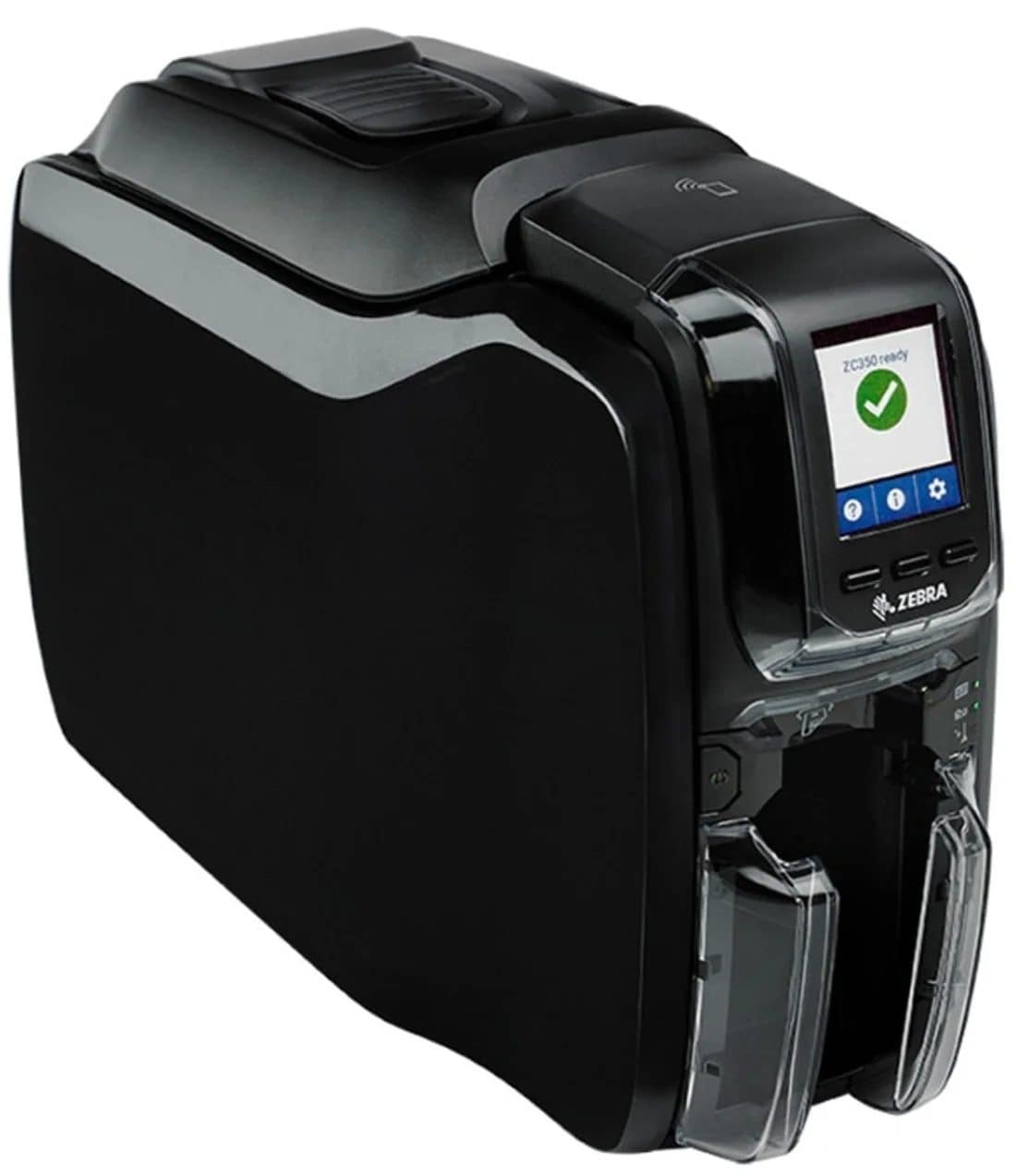

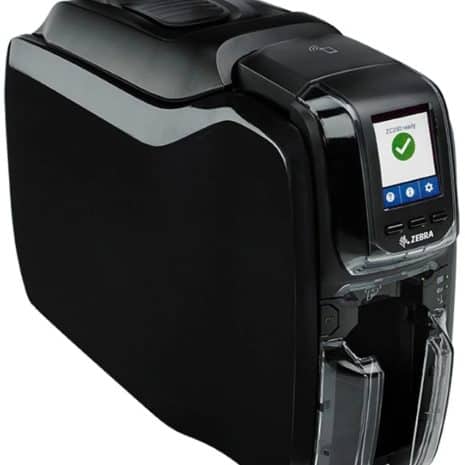

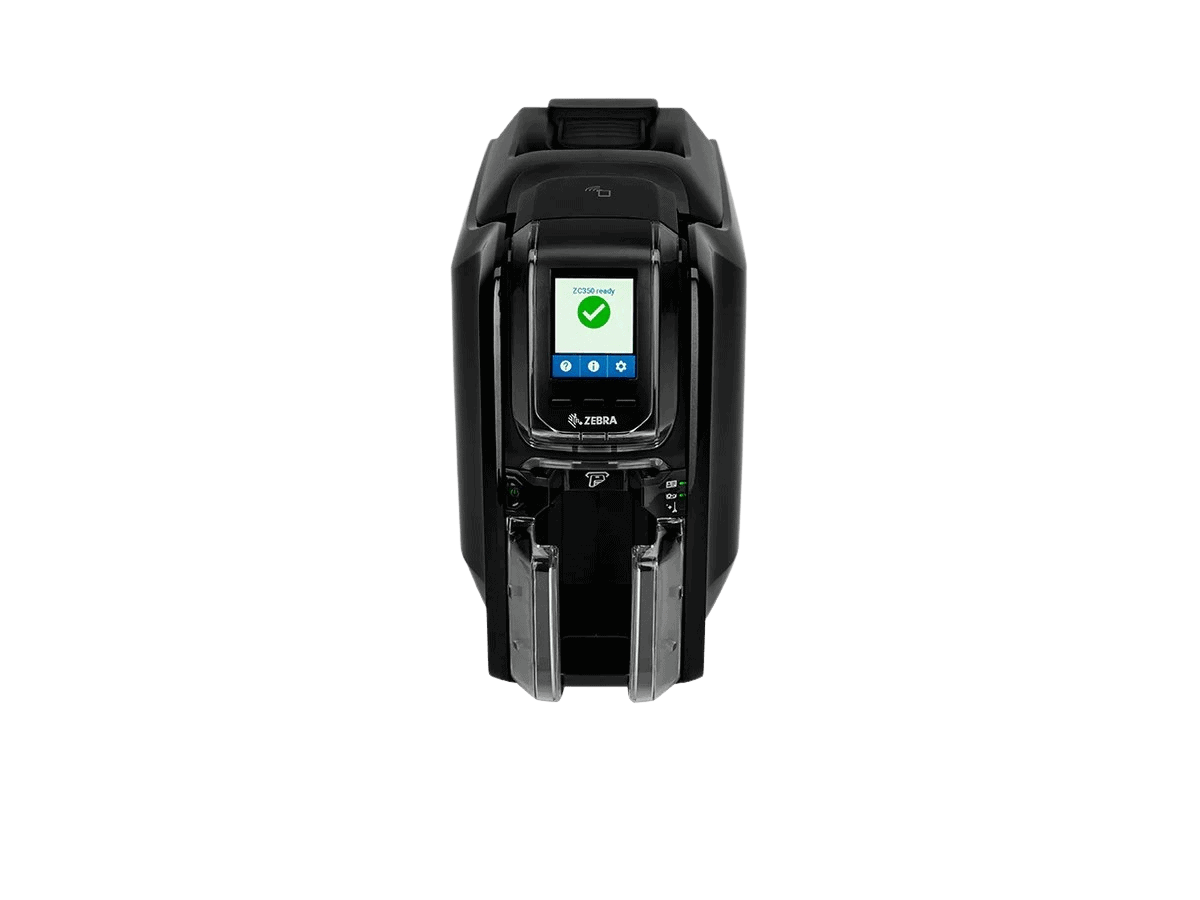

Zebra ZC350 Dual-Sided 300 x 300 DPI, PVC ID Card Printer

The Zebra ZC350 Dual-Sided 300 x 300 DPI, PVC ID Card Printer is a versatile and high-performance card printer designed for producing high-quality ID cards, badges, and membership cards. With a compact design, it supports direct-to-card dye-sublimation and thermal transfer printing. The ZC350 offers fast printing speeds of up to 150 cards per hour for color and up to 900 cards per hour for monochrome. It features dual-sided printing, a user-friendly interface, and various connectivity options, including USB and Ethernet. Ideal for organizations seeking efficient and reliable card printing solutions, the ZC350 combines durability with advanced security features.

Zebra ZC350 Dual-Sided ID Card Printer Specifications

General Features

• Printer Type: Direct-to-card printer
• Printing Method: Dye-sublimation and thermal transfer
• Print Color: Full-color (CMY) and monochrome printing
• Dual-Sided Printing: Yes (automatic)

Printing Specifications

• Print Resolution:
  • 300 dpi (11.81 dots/mm)
• Print Speed:
  • Color (YMCKO): Up to 150 cards per hour (CPH)
  • Monochrome: Up to 900 cards per hour (CPH)

Card Specifications

• Card Types Supported:
  • PVC, Composite PVC, PET, and ABS cards
• Card Sizes:
  • CR80 (3.375″ x 2.125″ or 85.6mm x 54mm)
• Card Thickness:
  • 30 mil to 40 mil (0.76 mm to 1.0 mm)

Connectivity

• Interface Options:
  • USB 2.0
  • Ethernet (10/100)
  • Optional Wi-Fi

Memory

• Standard Memory:
  • 256 MB RAM
  • 128 MB Flash

Operating Environment

• Operating Temperature:
  • 50°F to 104°F (10°C to 40°C)
• Operating Humidity:
  • 20% to 80% non-condensing

Physical Specifications

• Dimensions:
  • 7.87″ H x 14.96″ W x 12.60″ D (200 mm H x 380 mm W x 320 mm D)
• Weight:
  • Approximately 10.5 lbs (4.76 kg)

Power

• Power Supply:
  • External power supply
• Power Consumption:
  • Operating: 130 watts
  • Idle: 25 watts
  • Standby: 5 watts

Security Features

• Locking Card Hoppers: Yes
• Data Encryption: AES-256 for secure data transmission

Software Compatibility

• Supported Operating Systems: Windows, Mac OS, and Linux
• Included Software: Zebra Designer Software for card design and printing

Additional Features

• LED Status Indicators: For monitoring printer status
• User-Friendly Interface: LCD screen for easy navigation and printer settings adjustment

Warranty

• Warranty Period: 2 years on printer, 1 year on printhead

These specifications make the Zebra ZC350 a robust choice for organizations needing high-quality, dual-sided card printing, such as ID badges, access control cards, and membership cards.
