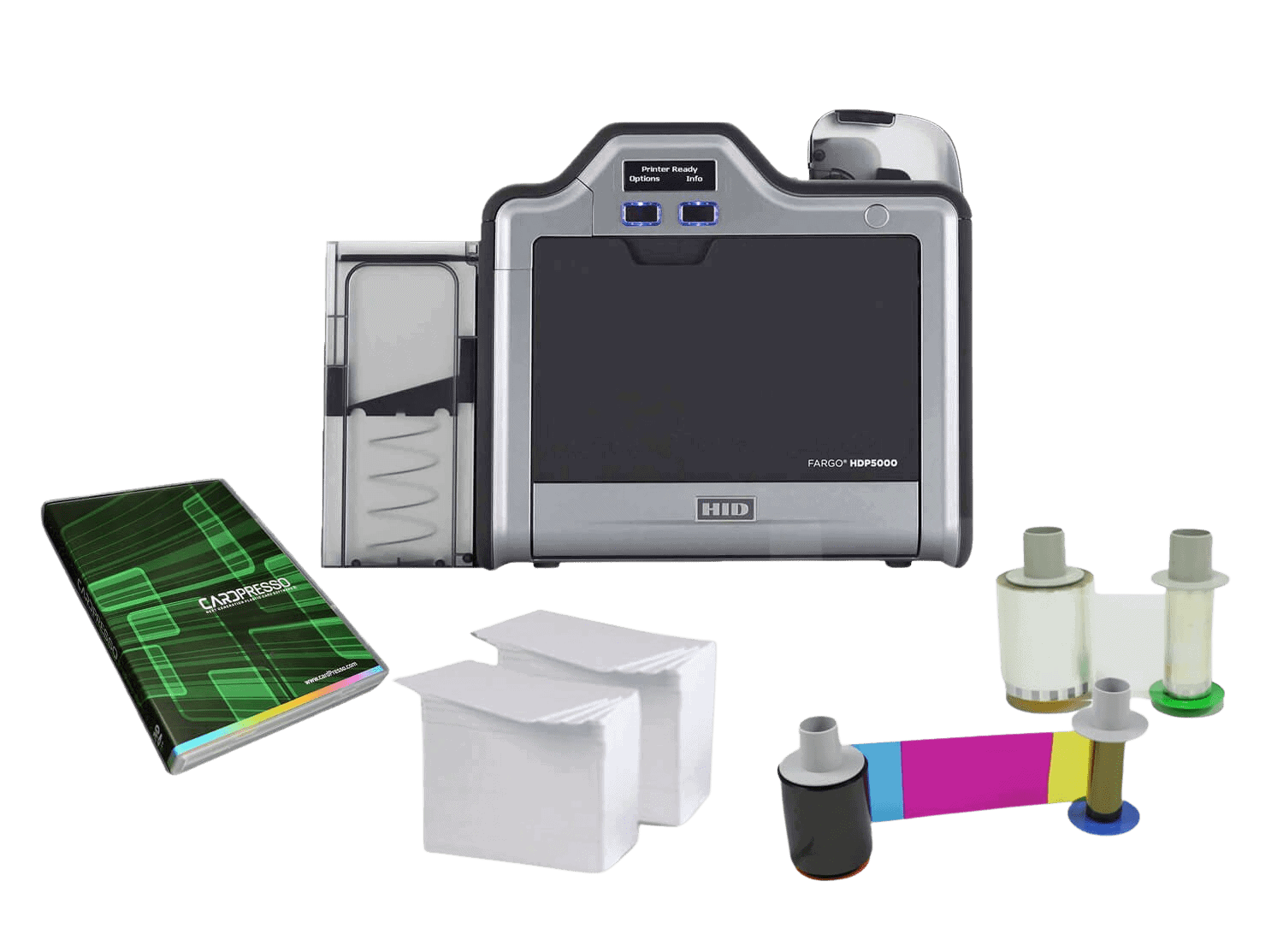

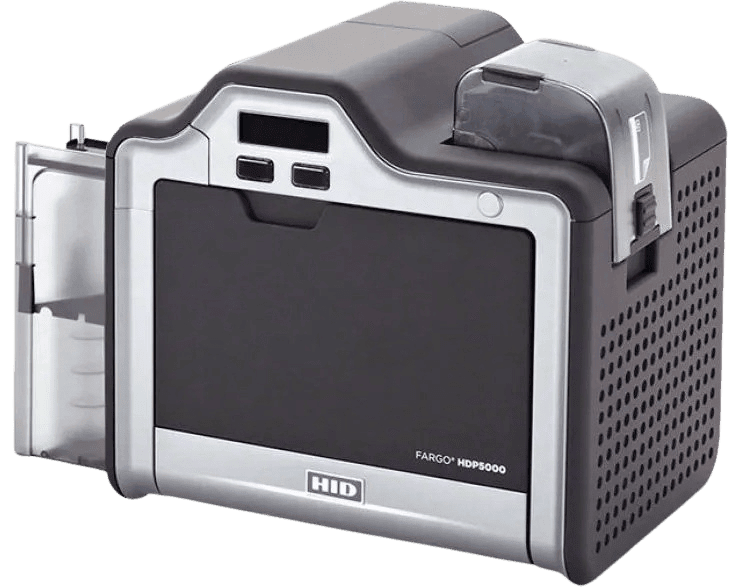

HID FARGO HDP5000 Dual-Sided PVC ID Card Printer

The HID FARGO HDP5000 Dual-Sided PVC ID Card Printer  is a high-quality, versatile printer designed for producing secure, durable ID cards. Utilizing HDP® reverse transfer technology, it delivers sharp, vibrant images with edge-to-edge printing. This printer supports dual-sided printing and offers various encoding options, including magnetic stripe and smart card encoding. With optional lamination for added security and durability, the HDP5000 is ideal for businesses, schools, and government institutions requiring professional, secure ID card printing.

Specifications for HID FARGO HDP5000 Dual-Sided PVC ID Card Printer

---

Printing Technology:

• Print Method: HDP® (High Definition Printing) dye-sublimation/reverse transfer.
• Resolution: 300 dpi (dots per inch).
• Print Modes: Full-color (YMCK), single-color (K), dual-sided printing.
• Print Speed:
  • Full-color single-sided: Up to 24 seconds per card (150 cards per hour).
  • Full-color dual-sided: Up to 38 seconds per card (96 cards per hour).

Card Compatibility:

• Card Types: PVC, PET, polycarbonate, and composite cards.
• Card Size: CR-80 (standard credit card size), CR-79 adhesive-backed cards.
• Card Thickness: 0.030 in (30 mil) to 0.050 in (50 mil).
• Card Input Hopper Capacity: 100 cards (30 mil).
• Card Output Hopper Capacity: 100 cards (30 mil).

Encoding Options:

• Magnetic stripe encoding.
• Contact and contactless smart card encoding (optional).
• RFID card encoding (optional).

Connectivity:

• USB 2.0.
• Ethernet with internal print server.

Software and Drivers:

• Compatible with Windows OS: Windows XP, Vista, 7, 8, 10 (32 & 64-bit).
• Drivers included with printer.

Lamination (Optional):

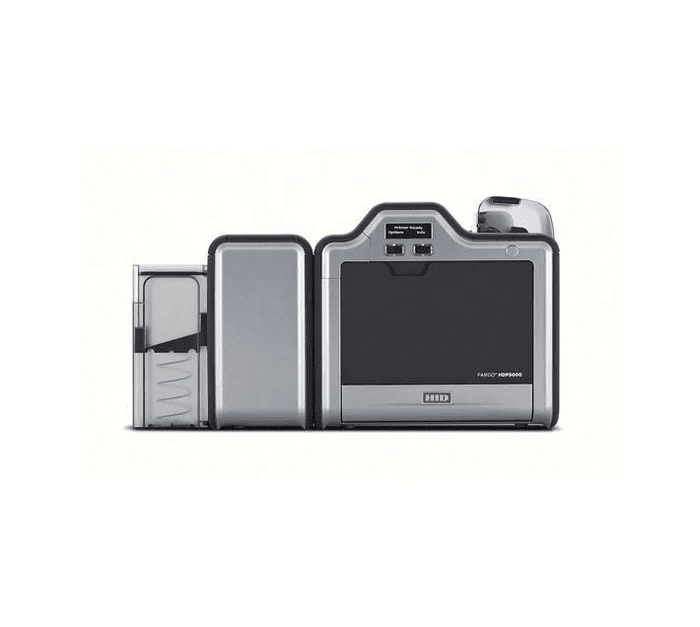

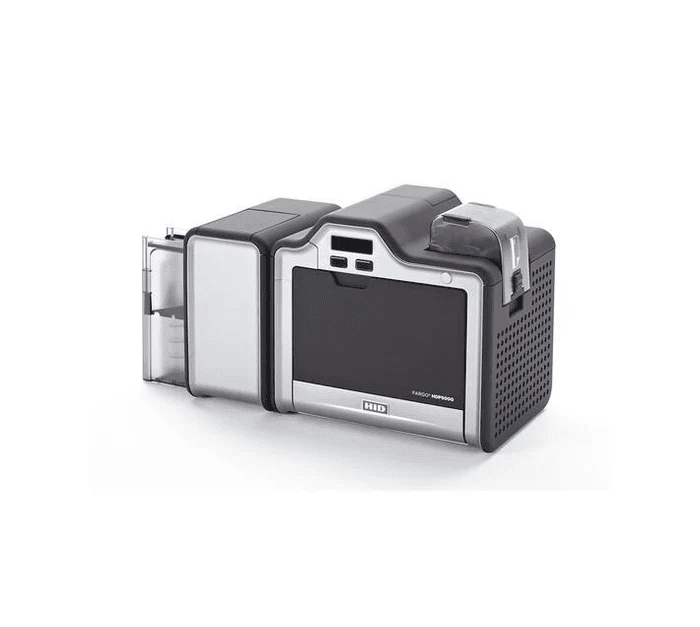

• Single-sided or dual-sided simultaneous lamination module (optional).
• Overlaminate material options for additional card durability.

Display:

• User-friendly graphical display with smart status monitor.

Ribbons and Film:

• Full-color ribbon (YMCK): 500 prints per roll.
• Monochrome ribbon: 1000 prints per roll.
• Retransfer film: 1500 prints per roll.

Security Features:

• Optional card lamination for tamper resistance and increased card durability.
• Secure materials: Custom holographic overlaminate.
• Optional printer password protection.

Physical Dimensions:

• Dimensions (H x W x D): 12.5″ x 13″ x 17.5″ (317.5 mm x 330.2 mm x 444.5 mm).
• Weight: Approximately 30 lbs (13.6 kg) without options.

Power Requirements:

• Voltage: 100-240V AC, 50/60 Hz.

Warranty:

• 3-year printer warranty.
• Lifetime printhead warranty (limited).

Operating Environment:

• Temperature Range: 65° to 80°F (18° to 27°C).
• Humidity: 20% to 80% non-condensing.
