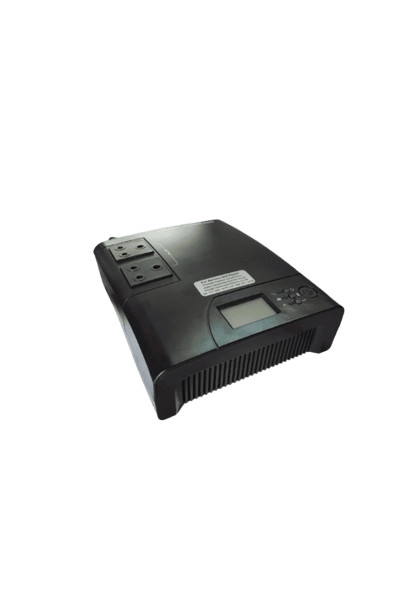

New Crystal Modified Sine Wave Inverter 720W/1200VA, 12V

The New Crystal Modified Sine Wave Inverter – 720W/1200VA, 12V is a solid choice for users who need to power basic household appliances and electronic devices from a 12V DC battery. While it offers affordability and simplicity, its modified sine wave output may limit its suitability for sensitive electronics or devices that require a pure sine wave. Always ensure the connected devices’ power requirements fall within the inverter’s limits to avoid overloading.

Key Specifications:

1. Input Voltage (DC):

   • Nominal Voltage: 12V DC (typically from a 12V battery, such as a lead-acid, lithium, or AGM battery)
   • Voltage Range: Typically 10V to 15V DC (some models may have a wider range, but it depends on the inverter design)

2. Output Voltage (AC):

   • Nominal Voltage: 120V AC (standard US household voltage)
   • Output Frequency: 60Hz ± 2Hz (standard in the United States)

3. Output Power:

   • Continuous Output Power: 720W (watts)
   • Surge Power: 1200W (watts), typically used for brief spikes in power demand (like starting motors)

4. Waveform Type:

   • Modified Sine Wave (also referred to as Square Wave or Modified Square Wave)
   • This waveform is simpler and more cost-effective than pure sine wave inverters, but it may cause some sensitive electronic devices (such as medical equipment or high-end audio equipment) to malfunction or not operate efficiently.

5. Efficiency:

   • Typically between 85% and 90%, depending on load conditions and the specific inverter model.

6. Overload Protection:

   • Built-in protection against overloads, which will shut down the inverter if the load exceeds the maximum capacity (e.g., 720W continuous).
   • Some models might feature a “soft start” to prevent immediate shutdown and allow for brief overloads.

7. Low Battery Alarm and Shutdown:

   • Low Battery Alarm: Alerts you when the battery voltage drops to a preset threshold (usually around 10.5V or 11V).
   • Low Voltage Shutdown: To prevent battery damage, the inverter will shut off automatically when the voltage drops too low (typically around 10V DC).

8. Input Protection:

   • Reverse polarity protection: Prevents damage if the battery is connected incorrectly (positive to negative, or vice versa).
   • Fuse or circuit breaker for safety.

9. Output Protection:

   • Short circuit protection: Protects the inverter and connected devices from damage in the event of a short circuit.
   • Overload protection: Shuts down the inverter if the connected load exceeds the rated wattage.

10. Cooling:

    • Most modified sine wave inverters include internal cooling fans to prevent overheating, particularly under heavy load conditions.
    • The fan speed may increase depending on the inverter’s temperature.

11. Physical Dimensions:

    • Typically, the size is around 12 x 6 x 3 inches (300mm x 150mm x 80mm), but it can vary based on the manufacturer and model.

12. Weight:

    • Weight Range: 2 to 4 kg (approximately 4 to 8 lbs), depending on design and components.

13. Protection Features:

    • Short Circuit Protection
    • Overload Protection
    • Over Temperature Protection
    • Reverse Polarity Protection
    • Low Battery Shutdown
    • Surge/Spike Protection

14. Operating Temperature Range:

    • Typically, 0°C to 40°C (32°F to 104°F), though some models may have a wider range.

15. Safety Certifications:

    • Common certifications for such products may include CE, RoHS, UL, or FCC compliance, depending on regional regulations and the manufacturer.

Application/Use Cases:

• Powering household appliances (up to 720W) like lights, small refrigerators, fans, TVs, etc.
• Charging electronics such as laptops, tablets, and smartphones.
• RV and mobile power systems that need low-power AC output.
• Emergency backup for critical devices during a power outage (if the power needs are within the inverter’s capacity).

Pros of Modified Sine Wave Inverters:

• Affordable compared to pure sine wave inverters.
• Suitable for most standard appliances and devices.
• Lightweight and compact, easy to install and use.
• Reliable for basic household items, lights, and electronic devices.
