TP-Link RE500X AX1500 Wi-Fi Range Extender

The TP-Link RE500X AX1500 Wi-Fi Range Extender boosts your existing wireless network to eliminate dead zones and improve coverage throughout your home. With Wi-Fi 6 technology, it delivers faster speeds and more stable connections for streaming, gaming, and everyday browsing. Easy setup via the TP-Link Tether app or WPS button gets you connected in minutes. It also supports a Gigabit Ethernet port for wired device connections where needed. Ideal for larger homes and busy networks, it enhances performance for multiple devices simultaneously.

Wireless & Performance

• Wi-Fi Standard: IEEE 802.11a/n/ac/ax (Wi-Fi 6) for 5 GHz and IEEE 802.11b/g/n for 2.4 GHz dual-band operation

• Frequency Bands: 2.4 GHz & 5 GHz

• Maximum Signal Rates:
  • 2.4 GHz up to 300 Mbps
  • 5 GHz up to 1200 Mbps
  — Total AX1500 throughput

• Working Modes: Range Extender / Access Point

• Mesh Compatibility: EasyMesh-compatible for seamless whole-home coverage

Hardware Features

• Ethernet Port: 1 × Gigabit Ethernet (10/100/1000 Mbps)

• Antennas: 2 × Internal antennas

• Buttons: WPS Button, Reset Button

• Input Power: 100–240 V ~ 50/60 Hz

• Max Power Consumption: ~10 W

• Dimensions: Approximately 78 × 36 × 149 mm (W × D × H)

Wireless Functions & Security

• Security Protocols:
  • 64/128-bit WEP
  • WPA/WPA2-PSK
  • WPA3 encryption

• Wireless Functions: Enable/Disable Wireless Radio, Access Control, LED Control, Power Schedule, Wi-Fi Coverage

• Reception Sensitivity: Detailed sensitivity metrics supported on 2.4 GHz and 5 GHz (e.g., HT20/HT40/HT80 rates)

General & Environmental

• Operating Temperature: 0 °C to 40 °C

• Storage Temperature: −40 °C to 70 °C

• Operating Humidity: 10 %–90 % non-condensing

• Certifications: FCC, RoHS

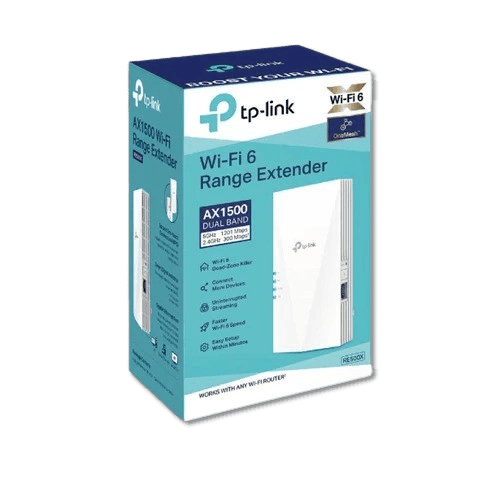

• Package Contents: TP-Link RE500X extender, Quick Installation Guide
