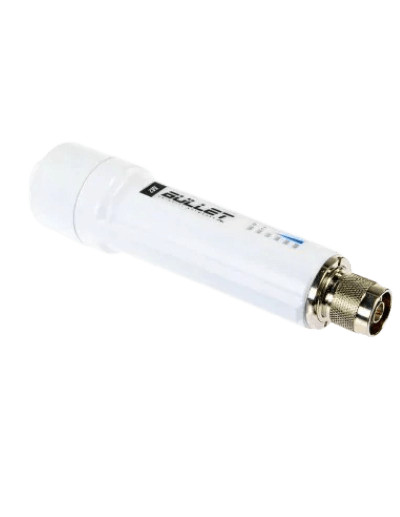

Ubiquiti UISP airMAX Bullet M2 outdoor connectivity

The Ubiquiti UISP airMAX Bullet M2 (BulletM2-HP) is a high-performance 2.4GHz outdoor wireless radio designed for point-to-point (PtP) and point-to-multipoint (PtMP) deployments. With a maximum output power of 27dBm, up to 150+ Mbps throughput, and an easy-to-mount design, it delivers reliable long-range connectivity. Managed via the UISP platform, it’s ideal for ISPs and outdoor wireless installations, featuring weatherproof durability and low power consumption.

Full Specifications:

• Technology: 2.4 GHz airMAX (802.11b/g/n)
• Frequency Range: 2.4 GHz (2.4 – 2.5 GHz)
• Throughput: Up to 150+ Mbps
• Antenna Type: N/A (Radio device, antenna sold separately)
• Wireless Standards: 802.11b/g/n
• Max Output Power: 27 dBm
• Networking:
  • 1 x Gigabit Ethernet Port (10/100/1000 Mbps)
• Processor: Atheros MIPS 24K 560 MHz
• RAM: 64 MB DDR2
• Flash Storage: 8 MB
• Security: WPA2, AES encryption
• Power Supply: 24V, 0.5A PoE (Power over Ethernet)
• Power Consumption: 6W
• Operating Temperature: -30°C to 75°C (-22°F to 167°F)
• Mounting: Pole-mountable with adjustable bracket
• Dimensions: 5.1 x 3.1 x 1.5 inches (130 x 78 x 39 mm)
• Weight: 0.5 lbs (0.23 kg)
• Management: Managed via the UISP platform for easy configuration and monitoring
• Additional Features:
  • Built for outdoor use with weatherproof design
  • Ideal for point-to-point or point-to-multipoint (PtMP) wireless links
  • High-power output for long-range connectivity
  • Compact form factor for easy installation in tight spaces

Ideal For:

• Outdoor wireless bridges and point-to-point (PtP) deployments
• ISPs needing cost-effective, long-range, and high-performance solutions
• Expanding coverage in large areas with outdoor installations
