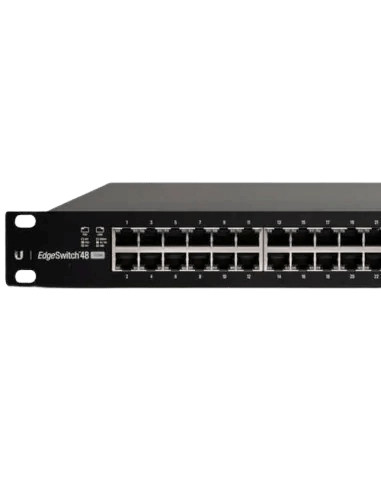

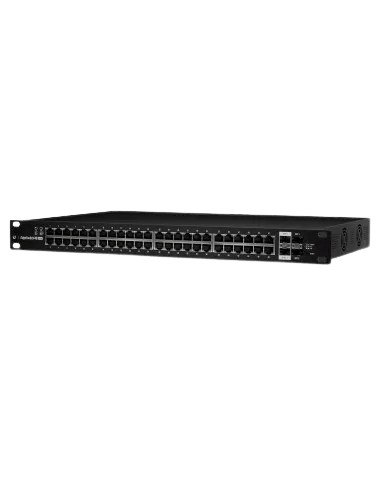

Ubiquiti UISP EdgeSwitch 48 Port PoE 500W Switch 2SFP+

The Ubiquiti UISP EdgeSwitch 48-Port PoE 500W Switch is a high-performance managed switch designed to deliver reliable connectivity and PoE capabilities for larger-scale network deployments. With 48 Gigabit Ethernet ports, 500W of PoE power, and 2 SFP+ ports for 10Gbps fiber uplinks, this switch is ideal for enterprise environments, data centers, or networks with high PoE device requirements.

Key Features:

• Model: EdgeSwitch 48-Port 500W PoE (ES-48-500W)

• Ports:

  • 48 x Gigabit Ethernet Ports (10/100/1000 Mbps, PoE+ supported)
  • 2 x SFP+ Ports (10 Gbps fiber uplinks for high-speed connectivity)

• PoE Power:

  • PoE Standard: 802.3af/at (PoE+)
  • PoE Power Budget: 500W total PoE power output
  • PoE Output per Port: Each Ethernet port can provide up to 30W for PoE+ devices

• Switching Capacity:

  • Non-blocking full line-rate switching
  • Switching Throughput: 70 Gbps
  • Max. Packet Forwarding Rate: 52.5 Mpps (Million packets per second)

• Networking Features:

  • Layer 2 Managed Switch with Layer 3 static routing support
  • VLAN Support: 802.1Q VLAN tagging
  • Link Aggregation: LACP (802.3ad) for link bonding and increased bandwidth
  • Spanning Tree Protocol (STP): Prevents network loops
  • Jumbo Frame Support: Up to 9,000 bytes for handling large data payloads
  • IGMP Snooping: Optimizes multicast traffic
  • Port Mirroring: For traffic analysis and monitoring

• Management:

  • UISP Integration: Centralized network management for monitoring and configuration
  • Web-based GUI: Easy-to-use interface for configuration, monitoring, and diagnostics
  • CLI (Command Line Interface): Advanced configuration options for experienced users
  • SNMP: For network monitoring and integration with third-party systems
  • RADIUS and TACACS+: For secure authentication and centralized access control

• Security Features:

  • 802.1X Port Authentication: Secure access control via RADIUS authentication
  • Access Control Lists (ACLs): Traffic filtering for enhanced security
  • Secure Management: HTTPS and SSH support for encrypted management access

• Power & Environmental:

  • Power Input: 100-240V AC, 50-60Hz
  • Power Consumption: 500W (maximum PoE power budget)
  • Cooling: Active cooling with an internal fan
  • Operating Temperature: -5°C to 45°C (23°F to 113°F)
  • Operating Humidity: 90% non-condensing

• Physical Specifications:

  • Form Factor: 1U rackmountable
  • Dimensions: 442 x 292 x 44 mm (17.4 x 11.5 x 1.7 inches)
  • Weight: 5.5 kg (12.1 lbs)
  • Mounting: Rackmount kit included for 19-inch racks
  • LED Indicators: For power, link/activity, and PoE status per port

• Included Accessories:

  • Power cord
  • Rackmount kit
  • Quick start guide

Applications:

• Enterprise Networks: Ideal for large-scale deployments requiring PoE+ power for devices such as IP cameras, access points, and VoIP phones.
• Data Centers: Provides high-speed uplink capabilities with SFP+ ports and the power required for devices.
• Security Systems: Supports powering and managing security cameras, NVRs, and other PoE-enabled devices.
• SMBs: Suitable for small to medium-sized businesses needing advanced networking and PoE functionality.
