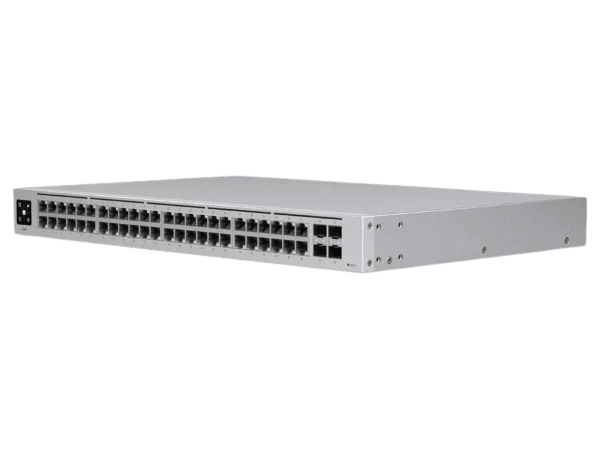

Ubiquiti UniFi Switch 48 Port Gigabit 4SFP

The Ubiquiti UniFi Switch 48 Port Gigabit 4 SFP is a high-performance managed switch designed for enterprise networks. It features 48 Gigabit Ethernet ports with PoE support, allowing for easy connectivity and power delivery to devices like IP cameras and access points.

With 4 SFP ports for uplinks, it provides flexibility for network expansion. The switch offers a total switching capacity of 70 Gbps and is managed through the UniFi Controller software, making it ideal for scalable, reliable network solutions in business environments.

General Specifications

• Model: Ubiquiti UniFi Switch 48
• Ports:
  • 48 x 10/100/1000 Mbps Gigabit Ethernet ports
  • 4 x SFP (Small Form-factor Pluggable) ports for uplinks

Performance

• Switching Capacity: 70 Gbps
• Forwarding Rate: 51.2 Mpps (million packets per second)
• MAC Address Table: 16,000 entries
• Jumbo Frame Support: Up to 9K bytes

Power over Ethernet (PoE)

• PoE Standard: IEEE 802.3af/802.3at (PoE+)
• PoE Ports: 48 Gigabit Ethernet ports support PoE
• Total PoE Power Budget: 802.3af: 15.4W per port, 802.3at: 30W per port

Management Features

• Management Type: Managed via UniFi Controller software
• Web Management: Yes, through UniFi Network Controller
• SNMP Support: Yes

Networking Features

• VLAN Support: Yes, supports 4096 VLANs (IEEE 802.1Q)
• QoS (Quality of Service): Yes, with 802.1p priority tagging
• Link Aggregation: Yes, supports LACP (Link Aggregation Control Protocol)
• Spanning Tree Protocol: Yes, supports STP/RSTP/MSTP
• IGMP Snooping: Yes

Physical Specifications

• Dimensions: Approx. 442mm x 300mm x 44mm (17.4″ x 11.8″ x 1.7″)
• Weight: Approx. 3.4 kg

Environmental Specifications

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% (non-condensing)

Power Specifications

• Power Input: 100-240V AC, 50/60 Hz
• Power Consumption: 250W (max)

Additional Features

• Cooling: Fanless design for silent operation
• Mounting: Rack mountable (1U height)
