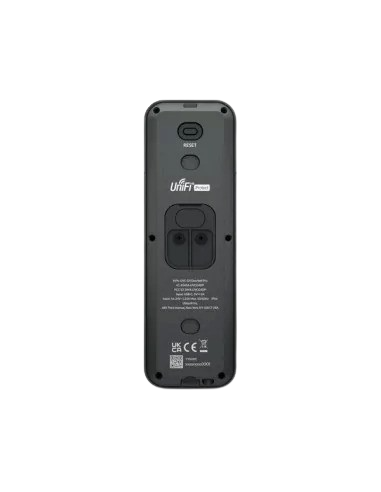

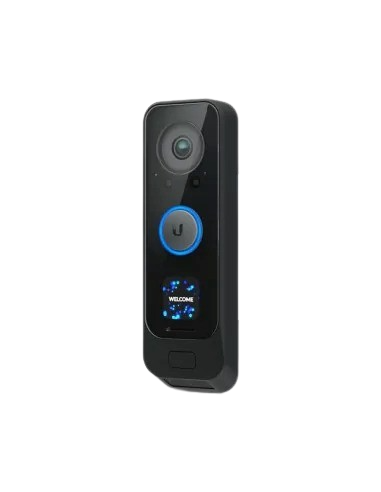

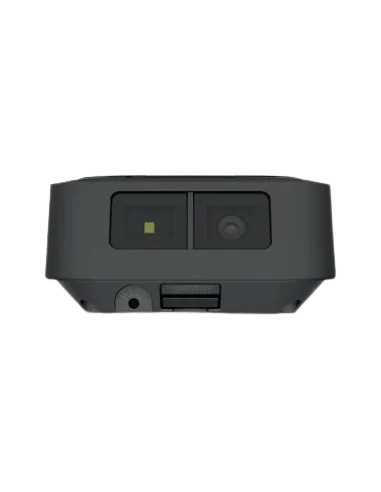

Ubiquiti UniFi Protect WiFi Video Doorbell Pro

The Ubiquiti UniFi Protect G4 Doorbell Pro is a high-performance Wi-Fi video doorbell designed to integrate seamlessly with UniFi Protect ecosystems. It features a primary 5MP camera delivering 1600×1200 resolution at 30 FPS, complemented by an 8MP secondary package camera for enhanced package detection. The device offers dual-band Wi-Fi connectivity and supports Gigabit Ethernet via the optional UACC-Adapter-DBPOE (sold separately). Its IPX4-rated weather-resistant casing ensures reliable outdoor operation. The doorbell is equipped with a built-in porch light illuminating objects up to 2 meters away and features a programmable display for custom messages.

📐 Mechanical

• Dimensions: 160.6 x 51.7 x 28.7 mm (6.32 x 2.03 x 1.13 inches)

• Weight:

  • Without mount: 253 g (8.92 oz)

  • With flat wall mount: 286 g (10.08 oz)

  • With 20° wedge mount: 325 g (11.46 oz)

• Enclosure Materials: Polycarbonate, aluminum alloy

• Mounting Materials:

  • Flat wall mount: Aluminum alloy

  • 20° wedge mount: Polycarbonate

• Weatherproofing: IPX4 rated

📷 Optics

• Main Camera:

  • Sensor: 5MP CMOS

  • Lens: Fixed focal length

  • Field of View:

    • Horizontal: 138°

    • Vertical: 114°

    • Diagonal: 155°

• Package Camera:

  • Sensor: 8MP CMOS

  • Field of View:

    • Horizontal: 97.5°

    • Vertical: 79.4°

    • Diagonal: 118.2°

• Night Mode: Built-in IR LED illumination with IR cut filter

🎥 Video

• Resolution: 1600 x 1200 (4:3 aspect ratio)

• Maximum Frame Rate: 30 FPS

• Compression: H.264

⚙️ System

• Processor: Quad-core ARM Cortex-A53

• Memory: 512 MB RAM

• Flash Memory: 256 MB

• Networking Interface:

  • 802.11a/b/g/n/ac Wi-Fi

  • Bluetooth 5.0

  • Gigabit Ethernet (with UACC-Adapter-DBPOE)

• Power Requirements:

  • 16–24V AC, 1.25A max, 50/60 Hz

  • USB-C power cable, 5V DC, 2A

• Supported Voltage Range: 37–57V DC

• Maximum Power Consumption: 10W

• Link/Activity LED: Yes

• Buttons:

  • Ring button

  • Factory reset

🔊 Audio

• Microphone: Yes (can be disabled in software)

• Speaker: Yes

🧰 Software

• Management Interface: UniFi Protect application

• Mobile App:

  • UniFi Protect for iOS: Version 1.5.8 and later

  • UniFi Protect for Android: Version 1.4.8 and later

🔔 Compatible Chimes

• Mechanical:

  • Broan-NuTone: LA126WH, LA11WH, LA39WH

  • Heath Zenith: SL-2735

  • Craftmade: CTPW-RG

  • Newhouse Hardware: CHM3D

• Digital:

  • Broan-NuTone: LA600WH

  • IQ AMERICA: DW-2850, DW-2840

🌡️ Environmental

• Operating Temperature: -10 to 40°C (14 to 104°F)

• Operating Humidity: 10–90% non-condensing

✅ Certifications

• CE

• FCC

• IC

• NDAA Compliant
