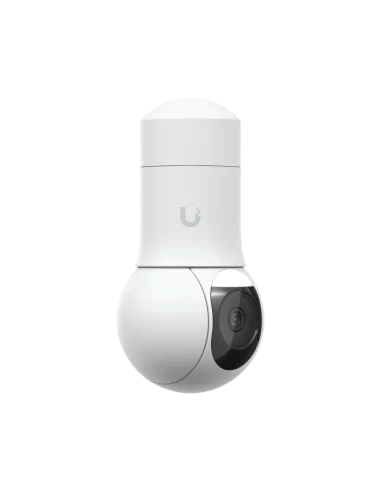

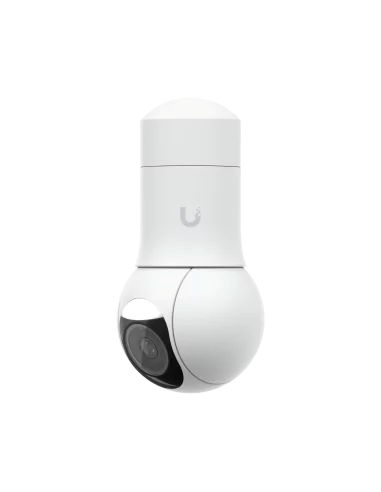

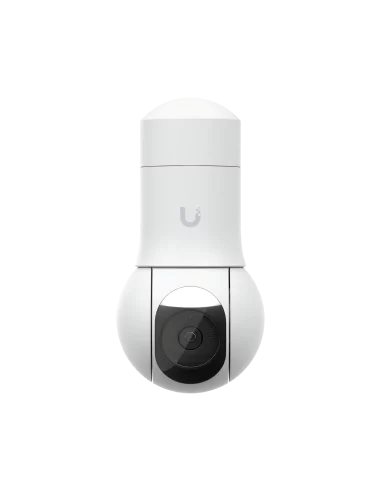

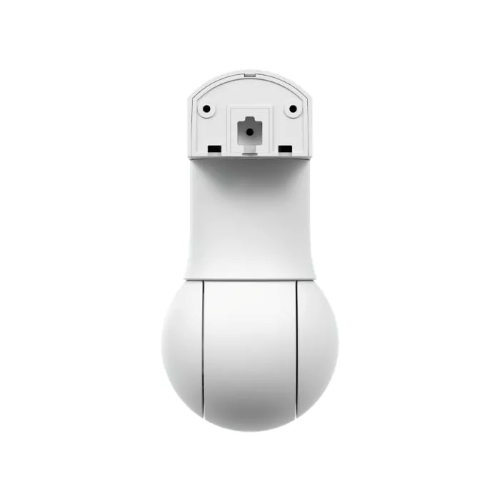

Ubiquiti UniFi Protect G5 PTZ 4MP IP Camera

The Ubiquiti UniFi Protect G5 PTZ is a high-performance outdoor PTZ camera designed for comprehensive surveillance needs. It features a 5MP 1/2.7″ CMOS sensor delivering crisp 4MP (2688 x 1512) resolution video at 30 frames per second. The camera’s 3.42–6.85 mm varifocal lens offers a 2x optical zoom, providing flexibility in monitoring wide areas and focusing on specific details. Equipped with built-in IR and white LED illumination, it ensures clear night vision up to 20 meters (65 feet), even in low-light conditions. The integrated microphone allows for audio recording, enhancing situational awareness.

Designed for durability, the G5 PTZ boasts an IP66 weatherproof rating and IK04 tamper resistance, making it suitable for various environmental conditions. Power over Ethernet Plus (PoE+) simplifies installation by delivering both power and data over a single cable. The camera supports AI-driven event detection, including automatic person tracking, and integrates seamlessly with the UniFi Protect ecosystem for centralized management. Its compact design and versatile mounting options (wall or pole) make it adaptable to different surveillance setups. Whether deployed in commercial or residential settings, the UVC-G5-PTZ offers reliable, high-quality monitoring to enhance security

📷 Camera & Optics

• Sensor: 5MP 1/2.7″ CMOS

• Resolution: 4MP (2688 x 1512) at 30 FPS

• Lens: Focal Length: 3.42–6.85 mm; Aperture: ƒ/1.85–ƒ/2.4

• Field of View:

  • Wide: H: 99.7°, V: 51.9°, D: 121°

  • Telephoto: H: 45.5°, V: 25.4°, D: 52.4°

• Optical Zoom: 2x

• Night Mode: Built-in IR & white LED illumination with IR cut filter

• IR Illumination Range: Up to 20 meters (65 feet)

🔧 Mechanical & Environmental

• Dimensions:

  • Without Mount: Ø90 x 152.5 mm (Ø3.5 x 6″)

  • With Mount: 90 x 94 x 179.5 mm (3.5 x 3.7 x 7″)

• Weight:

  • Without Mount: 580 g (1.3 lb)

  • With Mount: 650 g (1.4 lb)

• Enclosure Material: Aluminum alloy, polycarbonate

• Mount Material: Wall mount: polycarbonate; Pole mount: aluminum alloy

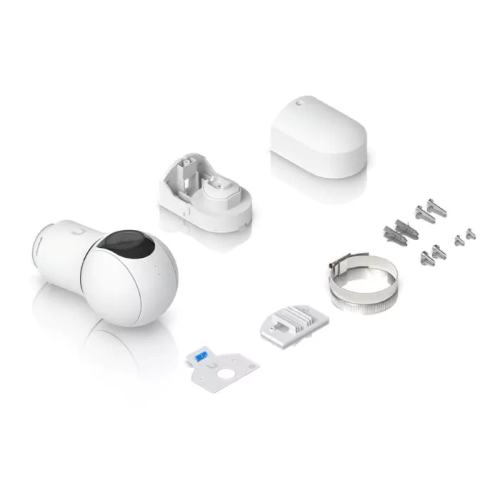

• Mounting Options: Wall and pole mount included; optional conduit adapter, surface, in-ceiling, pendant, and corner mounts available

• Weatherproofing: IP66

• Tamper Resistance: IK04

• Operating Temperature: -30 to 45°C (-22 to 113°F)

• Operating Humidity: 0 to 90% non-condensing

• Certifications: CE, FCC, IC

🔌 Power & Connectivity

• Power Method: PoE+ (802.3at)

• Supported Voltage Range: 37–57V DC

• Max. Power Consumption: 14W

• Networking Interface: 10/100 Mbps RJ45 Ethernet

• LED Indicators: R/G/B/W: link, activity; Floodlight: 400 lm

• Reset Button: Factory reset

🔊 Audio

• Microphone: Yes (can be disabled)

📱 Software & Integration

• UniFi Protect: Compatible with UniFi Protect web application and mobile app (iOS™ and Android™)

• AI Event Detection: Supports smart detections for people, vehicles, and animals
