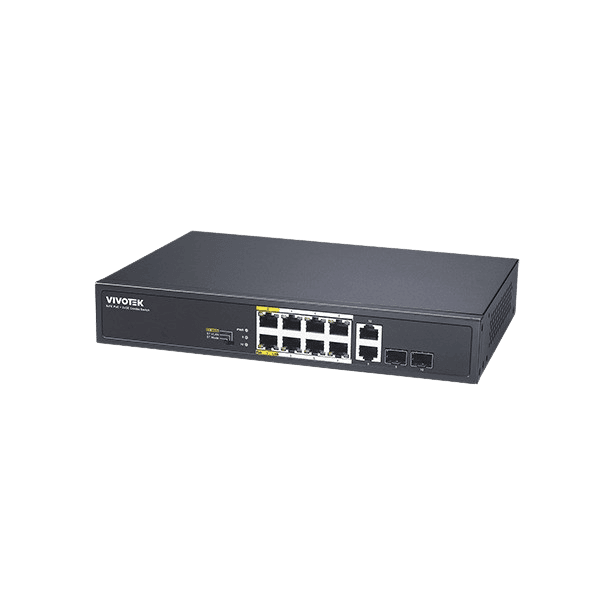

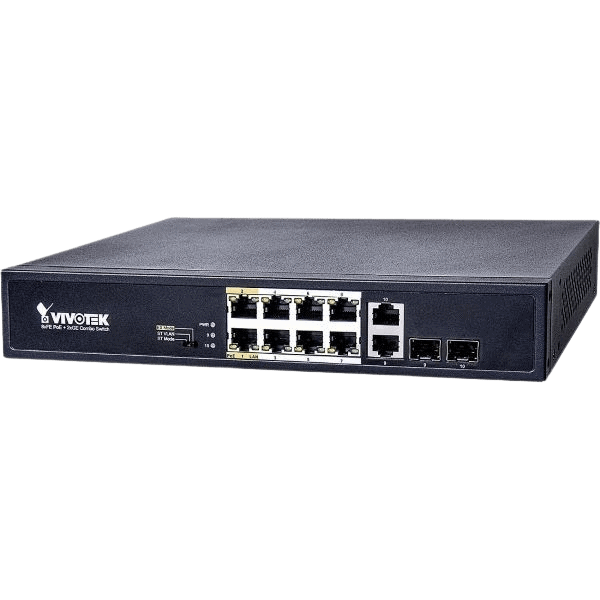

VIVOTEK 8xFE PoE+2xGE Unmanaged Combo Switch

Product Description:

• Type: Unmanaged PoE Switch
• Ports:
  • 8x FE (Fast Ethernet) PoE Ports: Provides Power over Ethernet (PoE) on these ports.
  • 2x GbE (Gigabit Ethernet) Combo Ports: These can be used as either 2 Gigabit Ethernet ports or a combination of one Gigabit Ethernet port and one Fast Ethernet port.

PoE Specifications:

• Max. PoE Output Power: 30W per PoE port.
• PoE Power Budget: 120W total for the entire switch.
• PoE Standard: IEEE 802.3af/at
• PoE Pin Assignment: Pins 1/2 (+) and 3/6 (-)

Performance:

• Surge Protection: 6KV (protection for electrical surges).
• Switching Bandwidth: 5.6 Gbps.
• MAC Address Table: Supports up to 4,000 MAC addresses.
• Jumbo Frames: Supports up to 1,536 Bytes.
• Extended PoE Mode: Supports up to 250 meters at 10 Mbps, allowing for longer cable runs with reduced speeds.

Environmental Conditions:

• Operating Temperature: -10°C ~ 50°C (14°F ~ 122°F).
• Storage Temperature: -20°C ~ 70°C (-4°F ~ 158°F).
• Operating Humidity: 10% to 90% Relative Humidity (RH).

Physical Specifications:

• Dimensions: 270 mm (L) x 181 mm (W) x 44 mm (H).
• Weight: 1.54 kg.

Power Requirements:

• Power Input: 100V ~ 240V.
• Frequency Types: 50 ~ 60 Hz.

Certifications:

• CE, UKCA, LVD, VCCI

Included in the Box:

• Power Cord.
• Quick Installation Guide (QIG).
• Rack Mount Kit.

Its applications include:

1. IP Surveillance Systems: Powering IP cameras for video surveillance while providing network connectivity.
2. VoIP Systems: Supporting VoIP phones that require PoE for both power and network connectivity.
3. Wireless Access Points (WAPs): Providing both power and data connectivity for wireless access points in office or public spaces.
4. Network Devices in Remote Locations: Extended PoE mode allows powering devices at distances of up to 250 meters, useful for remote devices like sensors, cameras, and outdoor access points.
5. Small Office/Home Office (SOHO): Ideal for small offices needing a reliable and simple unmanaged switch for network devices.
6. Industrial Applications: Suitable for environments requiring rugged, compact network setups, such as factory floors or warehouses.
