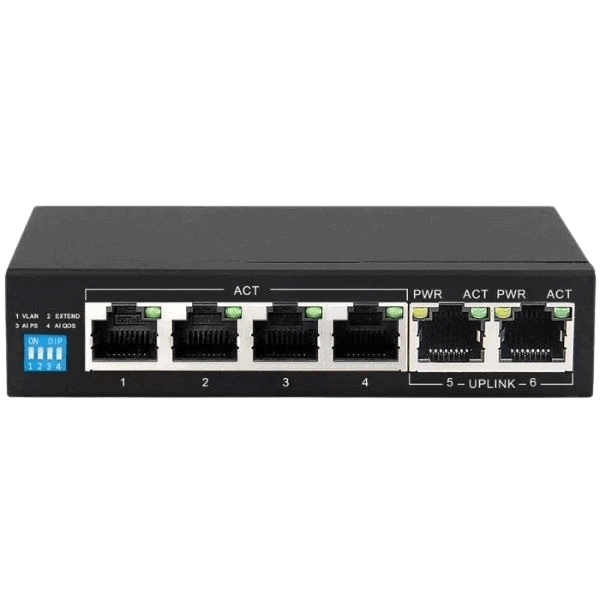

Scoop 6 Port Fast Ethernet 4 AI PoE 60W Switch

The Scoop 6 Port Fast Ethernet 4 AI PoE Switch is a compact and efficient networking solution designed for powering devices like IP cameras and access points. With 6 Fast Ethernet ports, including 4 PoE-enabled ports and a total power budget of 60W, it simplifies installations by delivering both data and power over a single cable. This unmanaged switch offers a plug-and-play setup, making it ideal for small businesses and home networks looking for reliable and easy-to-use connectivity.

General Specifications

• Model:Scoop 6 Port Fast Ethernet AI PoE Switch
• Ports:
  • 6 x 10/100 Mbps Fast Ethernet ports
  • 4 x PoE (Power over Ethernet) ports

Power over Ethernet (PoE)

• PoE Standard: IEEE 802.3af (PoE)
• Total PoE Power Budget: 60W
• PoE Ports: 4 Fast Ethernet ports support PoE

Performance

• Switching Capacity: 1.2 Gbps
• Forwarding Rate: 0.89 Mpps (million packets per second)
• MAC Address Table: 1,024 entries
• Jumbo Frame Support: Up to 1,500 bytes

Management Features

• Management Type: Unmanaged switch (plug and play)
• Web Management: Not applicable

Networking Features

• VLAN Support: No (basic unmanaged functionality)
• QoS (Quality of Service): Basic support (depends on model)

Physical Specifications

• Dimensions: Approx. 200mm x 100mm x 30mm (7.9″ x 3.9″ x 1.2″)
• Weight: Approx. 0.5 kg (1.1 lbs)

Environmental Specifications

• Operating Temperature: 0°C to 40°C (32°F to 104°F)
• Storage Temperature: -40°C to 70°C (-40°F to 158°F)
• Operating Humidity: 10% to 90% (non-condensing)

Power Specifications

• Power Input: 100-240V AC, 50/60 Hz
• Power Consumption: Typically less than 80W (including PoE power)

Additional Features

• Cooling: Fanless design for silent operation
• Mounting: Desktop or wall mountable

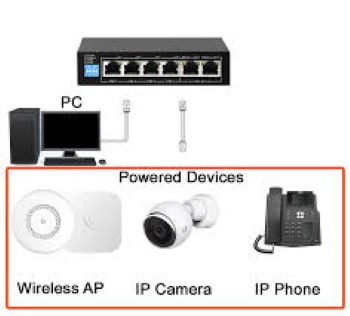

Suitable for various applications, including:

1. IP Surveillance: Connect and power IP cameras, enabling effective security monitoring without the need for additional power cables.
2. Wireless Access Points: Power and connect wireless access points to extend Wi-Fi coverage in homes or small offices.
3. VoIP Phones: Simplify installations of Voice over IP phones by providing both data and power through a single Ethernet cable.
4. Home Automation: Integrate and power smart home devices, such as sensors and controllers, for a cohesive home automation system.
5. Small Office Networking: Provide reliable connectivity for multiple devices in small office environments, enhancing productivity and communication.
6. Point-of-Sale Systems: Connect and power devices like tablets or terminals in retail environments for efficient transaction processing.
