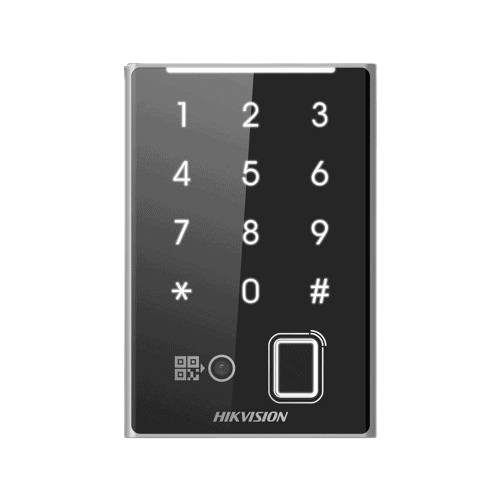

Hikvision QR Card Reader with Fingerprint

The Hikvision DS-K1109DKFB-QR Card Reader with Fingerprint Authentication provides a multi-layered security solution with fingerprint, RFID, and QR code authentication. Its integration with Hikvision’s access control system and the ability to store large user databases and event logs make it ideal for businesses and facilities requiring flexible and secure access control solutions. The additional features like tamper detection and anti-spoofing enhance its reliability in high-security environments.

General Specifications:

• Authentication Methods:

  • Fingerprint recognition for biometric authentication.
  • RFID Card (13.56 MHz, Mifare/IC cards).
  • QR Code scanning (via mobile app or display).

• Fingerprint Sensor:

  • Optical sensor with high recognition accuracy.
  • Fingerprint Capacity: Supports up to 1,000 fingerprints.
  • Matching Speed: ≤ 1 second.

• QR Code Scanning:

  • Allows users to scan QR codes via the Hik-Connect mobile app for contactless access.

• Connectivity:

  • TCP/IP for network communication.
  • Wiegand input/output for integration with external devices (e.g., additional card readers).
  • RS-485 for extended communication with access control panels.

• Power Supply:

  • DC 12V input, or POE (Power over Ethernet) supported for easier installation.

• Capacity:

  • User Capacity: Supports up to 3,000 users (via fingerprint and card).
  • Event Logs: Stores up to 50,000 event logs for monitoring and auditing access activity.

Physical Specifications:

• Dimensions: 125 x 80 x 22 mm.
• Weight: Approximately 0.25 kg.

Environmental Conditions:

• Operating Temperature: -20°C to +60°C (-4°F to 140°F).
• Operating Humidity: 10% to 90% (non-condensing).

Security Features:

• Anti-spoofing: Technology to prevent fake fingerprints and unauthorized access attempts.
• Tamper Detection: Alerts triggered if the device is tampered with.
• Encrypted Communication: Secure data transmission via AES encryption.

Software Integration:

• Compatible with Hikvision access control panels and iVMS software for system management and configuration.
• Supports integration with Hik-Connect for remote monitoring and control.

Key Features:

• Multiple Authentication Methods: Fingerprint, RFID card, and QR code for flexible, secure access control.
• High Fingerprint Capacity: Supports up to 1,000 fingerprints for user identification.
• Fast Matching: ≤ 1 second fingerprint matching speed.
• Network Integration: TCP/IP, Wiegand, and RS-485 for easy integration into larger security systems.
• Large Event Log Storage: Up to 50,000 event logs for tracking access activity.
• Tamper Protection and Anti-Spoofing: Built-in features for enhanced security.

Applications:

• Suitable for corporate offices, commercial buildings, industrial facilities, and high-security environments where multiple access authentication methods are required.
