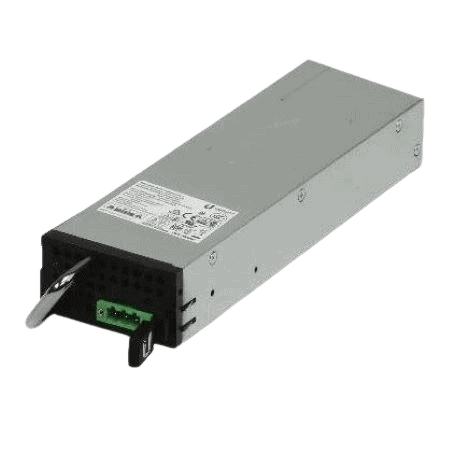

Ubiquiti UISP 54V/150W DC to DC PSU Module for EdgePower

The Ubiquiti UISP 54V, 150W DC to DC PSU Module for EdgePower is a power supply unit designed for use with Ubiquiti’s EdgePower series. It provides a DC-to-DC conversion to power devices that require a 54V DC output, commonly used in wireless networking equipment, particularly for Ubiquiti’s wireless radios and other devices in the UISP ecosystem. Below is a detailed overview of its key specifications and features.

Key Specifications:

1. Input Voltage:

   • Nominal Input Voltage: 12V to 24V DC (typically from a 12V or 24V battery, solar panel, or other DC sources).
   • Input Voltage Range: 9V to 30V DC (wide range to ensure flexibility in power input sources).

2. Output Voltage:

   • Output Voltage: 54V DC.
   • Output Current: Up to 2.78A (at 54V).
   • Regulation: Provides stable 54V DC with minimal ripple and noise.

3. Power Output:

   • Power Output: 150W (maximum).
   • Designed for powering Ubiquiti devices, particularly in wireless networking applications where 54V is the standard voltage for many access points, routers, and base stations.

4. Conversion Efficiency:

   • Efficiency: High efficiency, typically around 90% or higher, depending on load conditions and the specific design of the module.

5. Physical Dimensions:

   • Dimensions: Approximately 4.3 x 2.5 x 1.3 inches (109 x 64 x 33 mm).
   • Form Factor: Compact and modular, designed to be installed in Ubiquiti EdgePower chassis.

6. Operating Temperature:

   • Temperature Range: Typically -40°C to +70°C (-40°F to +158°F), ensuring reliable operation in harsh environments such as outdoor or industrial settings.

7. Mounting and Compatibility:

   • Mounting Type: Designed to be installed into the EdgePower series power supply chassis.
   • Compatibility: Specifically built for the Ubiquiti EdgePower system, though it may be used with other devices requiring a 54V input.

8. Safety Features:

   • Short Circuit Protection: Protects against damage from short circuits.
   • Overload Protection: Automatically shuts down the unit if the power output exceeds safe levels.
   • Overvoltage Protection: Ensures that the output voltage stays within safe limits.
   • Thermal Protection: Shuts down or reduces output if the PSU overheats, ensuring longevity and reliability.

9. Efficiency and Performance:

   • The DC-to-DC conversion provides a steady and efficient 54V output while converting from a lower DC voltage (12V or 24V), making it ideal for various remote and off-grid deployments.
   • Suitable for devices like Ubiquiti airMAX radios, UniFi network equipment, and other devices requiring a 54V power supply.

10. Connectors:

    • Input Connectors: Typically uses screw terminals or barrel connectors for the DC input (depending on the specific version of the module).
    • Output Connectors: Compatible with Ubiquiti devices that require a 54V DC input, typically via barrel jack or direct wiring.

11. Warranty:

    • Ubiquiti products often come with a 1-year warranty.

Features and Benefits:

• High Power Output: Capable of delivering up to 150W at 54V, providing adequate power for multiple Ubiquiti devices or other equipment that requires 54V DC input.
• Wide Input Voltage Range: Supports input voltages between 9V and 30V DC, giving flexibility for various power sources such as batteries, solar panels, or other DC power systems.
• Compact Design: The modular form factor allows it to be easily integrated into the Ubiquiti EdgePower system, taking up minimal space while providing high output.
• Efficient DC-to-DC Conversion: High conversion efficiency ensures that the energy loss is minimal, and the devices receive a stable, reliable 54V output.
• Built-In Protection: Includes short circuit, overload, and thermal protection to safeguard both the PSU module and connected devices.

Applications:

• Wireless Networking: Ideal for powering Ubiquiti wireless base stations, airMAX radios, UniFi devices, or other networking equipment that operates on 54V.
• Off-Grid Solar Systems: Suitable for use in solar-powered systems where a 12V or 24V battery is used, and a stable 54V DC output is required.
• Remote Site Deployments: Perfect for powering networking equipment in remote or outdoor locations where a 54V DC power source is needed and the DC input is available.
