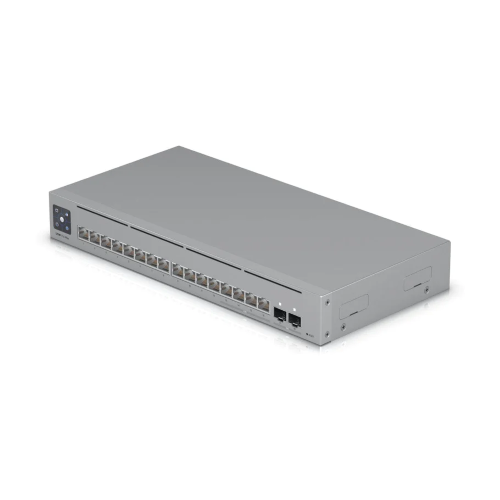

Ubiquiti UniFi Pro Max 16 Port 12 PoE 180W Switch

The Ubiquiti UniFi Pro Max 16-Port 12 PoE 180W Switch is a powerful Layer 3 managed switch designed for high-performance networking in demanding environments. Equipped with 12 Gigabit Ethernet PoE+ ports and 4 2.5GbE ports, it offers a total non-blocking throughput of 42 Gbps and a switching capacity of 84 Gbps, ensuring smooth and efficient data transfer. The switch also features 2 10G SFP+ uplink ports for high-speed network connections.

With a PoE power budget of 180W, it can power a variety of PoE devices, reducing the need for separate power supplies. Additionally, its fanless design ensures silent operation, making it ideal for noise-sensitive spaces. Managed through the UniFi Network application, it provides centralized control and monitoring for seamless network management. The Pro Max 16-Port Switch offers flexible installation options, including rack-mount, desktop, or wall-mount configurations.

🧰 Hardware Specifications

• Ports:

  • 12 × 10/100/1000 Mbps RJ45 (PoE+)

  • 4 × 1/2.5 Gbps RJ45 (PoE++)

  • 2 × 10G SFP+

• Total Non-Blocking Throughput: 42 Gbps

• Switching Capacity: 84 Gbps

• Forwarding Rate: 62.496 Mpps

• MAC Address Table Size: 16,000 entries

• Packet Buffer Size: 1.5 MB

• Management Interface: Ethernet In-Band

• Form Factor: 1U Rackmount, Desktop, Wall-Mountable

• Enclosure Material: SGCC Steel

• Display: 1.3″ Touchscreen LCM

• Buttons: Factory Reset

⚡ Power Specifications

• Input Options:

  • USB Type-C (5V DC, 5A)

  • AC/DC Adapter (Included)

• Max Power Consumption: 30W (excluding PoE output)

• PoE Power Budget: 180W

  • PoE: 15.4W

  • PoE+: 30W

  • PoE++: 60W

• Supported Voltage Range: 44–57V DC (PoE/PoE+)

• Heat Dissipation (Excluding PoE Output): 102.36 BTU/hr

🌡️ Environmental Specifications

• Operating Temperature: -5 to 40°C (23 to 104°F)

•  Humidity: 10% to 90% non-condensing

• Certifications: CE, FCC, IC

🌐 Layer 2 Features

• Link Aggregation (LACP)

• Spanning Tree Protocol (STP, RSTP)

• Quality of Service (DSCP)

• Pro AV Profiles (Play, Dante, Q-SYS, NDI, SDVoE, Shure, AES67, Crestron)

•  Configuration (Querier, Fast Leave, Router Port)

• IGMP Snooping

• 802.1X Control

• MAC-Based ACLs & Device Isolation

• DHCP Snooping & Guarding

• Egress Rate Limiting

• Flow Control

• Storm Control

• Multicast & Broadcast Rate Limiting

• MAC Address Blocking

• IP-Based ACLs & Network Isolation

• MAC-Based Port Restriction

• Port Isolation

•  Mirroring

• Jumbo Frames

• LLDP-MED

• Voice VLAN

• Loop Protection

🖥️ Layer 3 Features

•  Server (Local Networks)

• DHCP Relay

• Inter-VLAN Routing (Local Networks)

• Static Routing (Local Networks)

• Network Isolation with ACLs

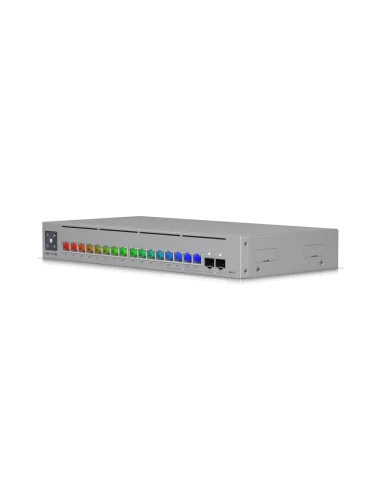

• Etherlighting™
