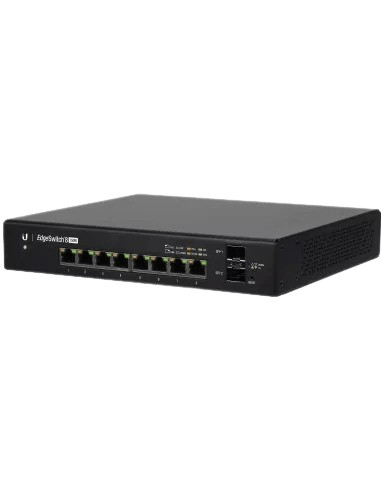

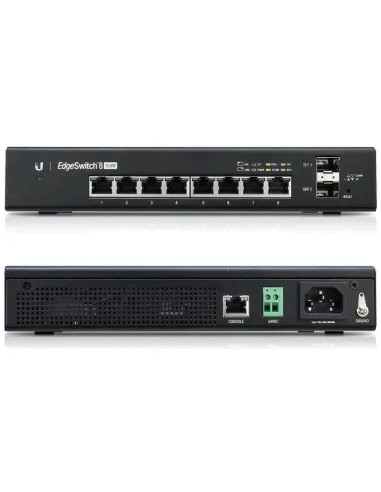

Ubiquiti UISP EdgeSwitch 8 Port PoE 150W Switch 2SFP

The Ubiquiti UISP EdgeSwitch 8 Port PoE 150W is a robust and feature-rich switch that provides high performance, extensive PoE support, and versatility for various networking setups. It is particularly suitable for applications requiring power over Ethernet for multiple devices while ensuring smooth data throughput and network management.

Key Features:

• 8 Gigabit Ethernet Ports:

  • 8 x 10/100/1000 Mbps RJ45 Ethernet ports.
  • Provides Power over Ethernet (PoE) on all 8 ports, making it suitable for powering devices such as cameras, access points, and other PoE-powered devices.

• PoE Power Budget:

  • Total power output: 150W.
  • PoE standards supported: 802.3af (PoE) and 802.3at (PoE+).
  • Allows you to power multiple devices while maintaining high data throughput.

• 2 SFP Ports:

  • 2 x Gigabit SFP (Small Form-Factor Pluggable) ports.
  • Used for fiber optic connections, ideal for long-range or high-speed uplinks.

• Switching Capacity:

  • 16 Gbps non-blocking throughput.
  • Enables high-performance and low-latency operation for demanding applications.

• Forwarding Rate:

  • 11.9 Mpps (Million packets per second).

• Layer 2 Management Features:

  • Includes VLAN support, QoS, and link aggregation (LACP).
  • Advanced features like port mirroring, spanning tree protocol (STP), and more for network management.

• Software Management:

  • Can be managed via the UISP Controller, which offers a user-friendly interface for configuring and monitoring the switch.
  • Support for web-based management and SNMP (Simple Network Management Protocol).

• Form Factor:

  • Rackmountable (1U height).
  • Includes mounting brackets for 19-inch rack installation.

• Physical Dimensions:

  • Dimensions (L x W x H): 440 mm x 180 mm x 43 mm.
  • Weight: 2.26 kg.

• Power Supply:

  • Input Voltage: 100-240V AC, 50/60 Hz.
  • Output Power: 150W PoE budget to power devices.

• Operating Temperature:

  • 0°C to 40°C (32°F to 104°F).
  • Designed for indoor use.

• LED Indicators:

  • Per-port LEDs indicating network status (Link, Activity, PoE status).

• Compliance:

  • RoHS compliant (Restriction of Hazardous Substances).
  • UL, CE, and other safety certifications.

Performance:

• High-Performance Switching:
  • With 16 Gbps switching capacity and 11.9 Mpps forwarding rate, this switch can handle demanding networks, ensuring smooth operation for voice, video, and data traffic.

Use Cases:

• Ideal for medium to large-scale deployments where PoE functionality is required for powered devices such as IP cameras, VoIP phones, and wireless access points.
• Suitable for small to medium ISPs or businesses needing an efficient, scalable, and easily manageable switch.

Additional Features:

• Smart Power Management: Intelligent PoE power management to prevent overload and optimize power distribution across the network.
• Intuitive UI: Managed via the UISP controller, which provides centralized monitoring and management of the network devices.

Warranty:

1-year limited warranty
