Ubiquiti UniFi Aggregation Switch Pro 28 Port with SFP

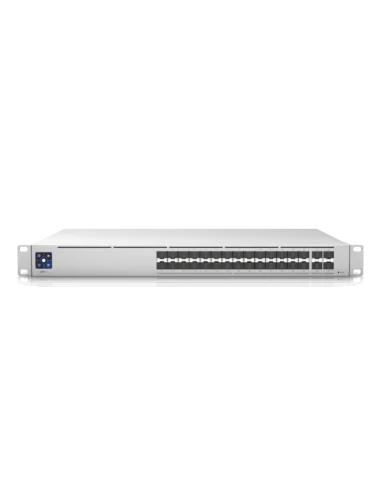

The Ubiquiti UniFi Switch Pro Aggregation (model USW-Pro-Aggregation) is a high-performance, fully managed Layer 3 switch designed to serve as the backbone of enterprise and data center networks. It features 28 10G SFP+ ports and 4 25G SFP28 uplink ports, delivering a total switching capacity of 760 Gbps and a forwarding rate of 565.44 million packets per second. This robust configuration enables seamless aggregation of high-bandwidth connections, ensuring efficient data flow across the network. Ideal for high-density environments such as large offices, campuses, and data centers, the UniFi Switch Pro Aggregation combines scalability, reliability, and intuitive management to meet the demands of modern networking infrastructures.

Hardware Specifications

• Ports:

  • 28 x 1/10 Gbps SFP+ ports

  • 4 x 1/10/25 Gbps SFP28 uplink ports

• Switching Capacity: 760 Gbps

• Forwarding Rate: 565.44 million packets per second (Mpps)

• Total Non-Blocking Throughput: 380 Gbps

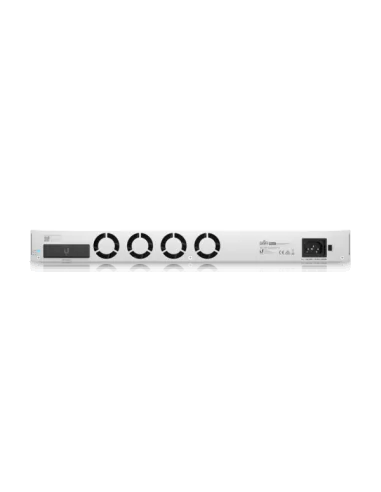

• Power Supply:

  • Internal AC/DC, 100W

  • Universal AC input (100–240V, 50/60 Hz)

  • DC input via USP RPS (11.5V DC, 8.7A)

• Maximum Power Consumption: 100W

• Dimensions: 442 x 325 x 44 mm (17.4 x 12.8 x 1.7 inches)

• Weight:

  • Without Mount: 4.6 kg (10.14 lb)

  • With Mount: 4.7 kg (10.36 lb)

• Enclosure Material: SGCC Steel

• Operating Temperature: -5 to 40°C (23 to 104°F)

• Humidity: 10–90% non-condensing

• Certifications: CE, FCC,

🖥️ Management & Features

• Management Interface: Ethernet In-Band

• Display: 1.3″ LCM color touchscreen with AR switch management

• ESD/EMP Protection:

  • Air: ±16kV

  • Contact: ±12kV

• Modes: SMB Layer 3 10/25 G Fiber Switch

• LED Indicators:

  • System: Status

  • SFP28/SFP+: Link/Activity

🔄 Layer 3 Features

• Routing:

  • Static Routing

  • Inter-VLAN Routing

• DHCP:

  • DHCP Server

  • Relay

• Management:

  • UniFi Network Application (web and mobile)
