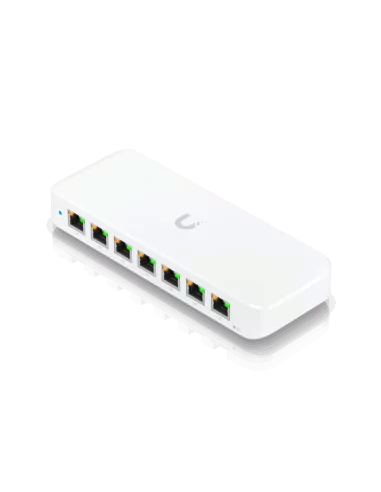

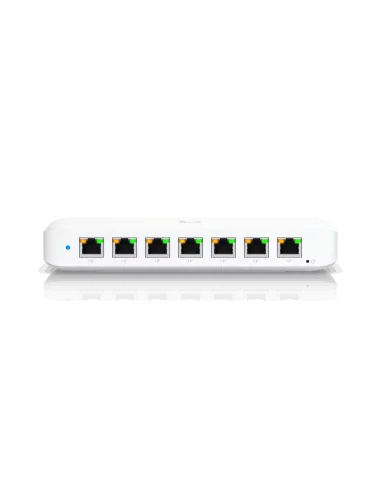

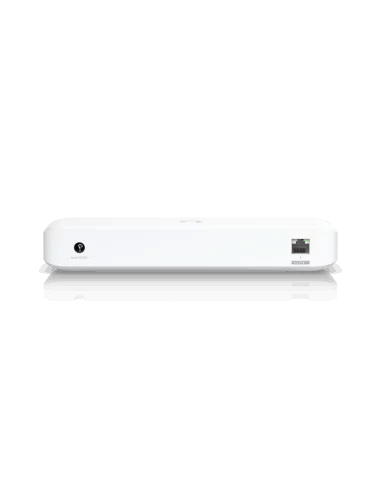

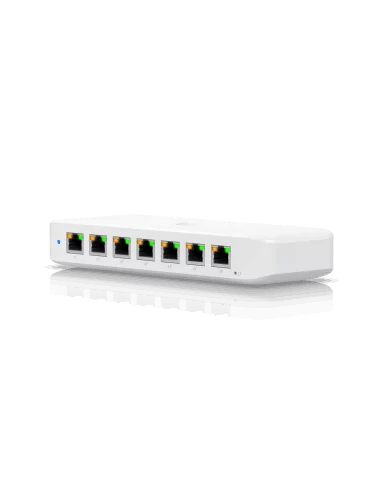

Ubiquiti UniFi Ultra 8-Port Gigabit PoE Switch

The Ubiquiti UniFi Ultra 8-Port Gigabit PoE Switch is a compact and efficient Layer 2 switch designed for modern home and small office networks. It features 8 Gigabit Ethernet ports—7 of which provide PoE+ output to power devices like access points, cameras, and VoIP phones—while one port supports PoE++ input for flexible, cable-efficient deployment. With a total PoE budget of up to 52W (via optional 60W adapter), this fanless switch ensures silent operation and easy integration into any environment. Seamlessly managed through the UniFi Network Controller, it offers centralized configuration, monitoring, and scalability as part of the UniFi ecosystem.

Hardware Features:

• Total Ports: 8 × Gigabit RJ45 Ethernet ports

• PoE Output: 7 × PoE+ (802.3at)

• PoE Input: 1 × PoE++ (802.3bt)

• PoE Budget:

  • Up to 42W (with PoE++ input)

  • Up to 52W (with 60W AC adapter)

  • Up to 202W (with 210W AC adapter at 45°C)

Performance:

• Total Non-Blocking Throughput: 8 Gbps

• Switching Capacity: 16 Gbps

• Forwarding Rate: 11.9 Mpps

• MAC Address Table Size: 4,000 entries

• VLANs Supported: 256

Power & Consumption:

• Power Input Options:

  • PoE++ (802.3bt) via Port 1

  • 54V DC via external adapter (not included)

• Max Power Consumption (Device Only):

  • 9W with PoE input

  • 8W with AC adapter input

Environmental:

• Operating Temperature:

  • PoE++ input: -30 to 60°C (-22 to 140°F)

  • 60W AC adapter: -20 to 45°C (-4 to 113°F)

  • 210W AC adapter: -20 to 60°C (-4 to 140°F)

• Operating Humidity: 10 to 90% non-condensing

Physical:

• Dimensions: 203 x 76 x 33 mm (8.0 x 3.0 x 1.3 in)

• Weight: 320 g (11.3 oz)

• Enclosure Material: Polycarbonate

• Mounting Options: Desktop, wall-mount, magnetic

Management:

• Managed Via: UniFi Network Controller (version 8.0.28 and later)

• Management Interface: Ethernet (in-band)

• LED Indicators:

  • System: Status

  • Ports: Link/Activity, PoE Status

• Reset Button: Yes (factory reset)
